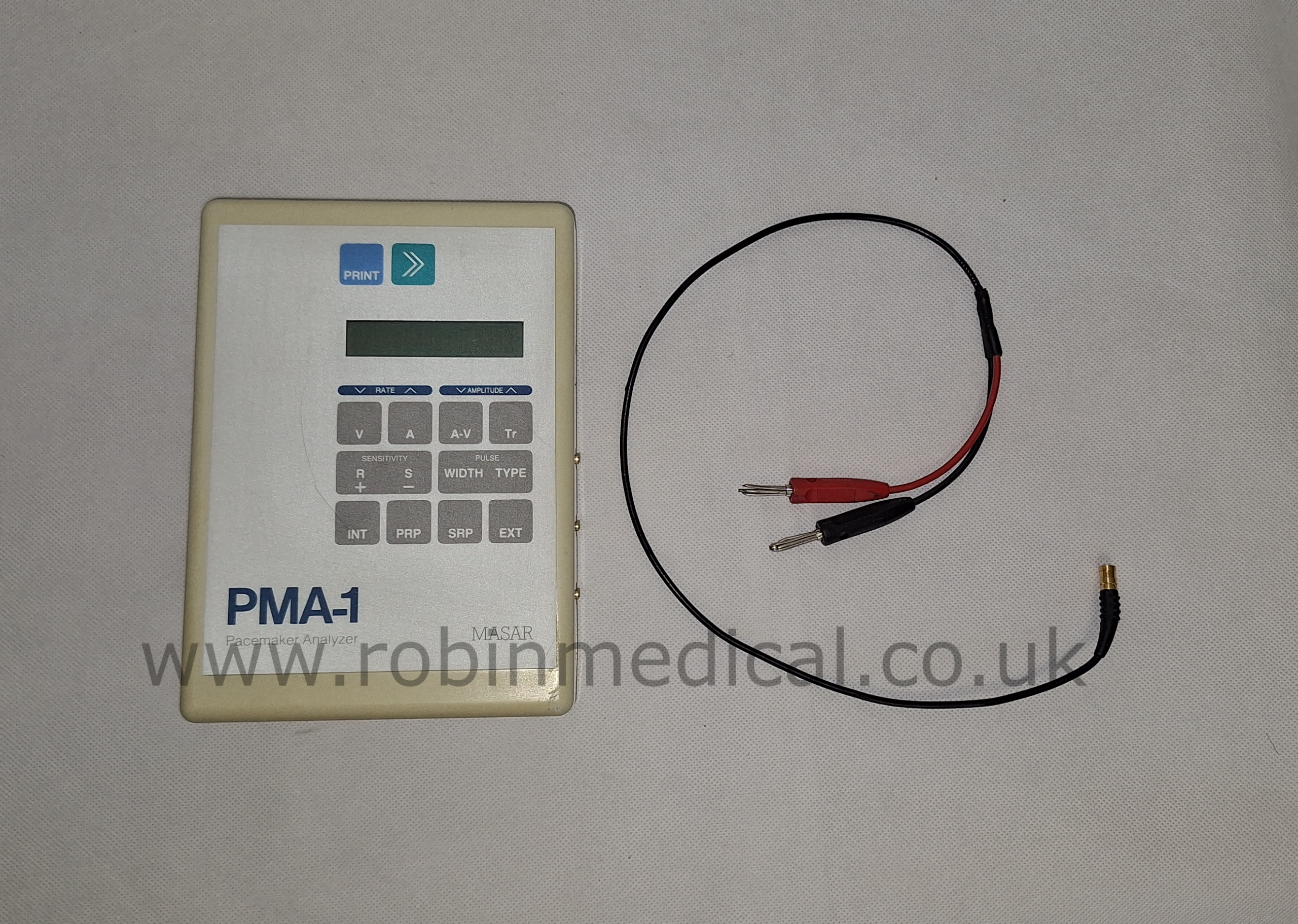

The MASAR PMA-1 Pacemaker Analyzer is a compact, portable device designed for the comprehensive testing and analysis of cardiac pacemakers. It is a vital tool for biomedical technicians and cardiologists, allowing for the verification of both temporary and permanent pacemaker functions. The PMA-1 can measure and evaluate key parameters such as pulse amplitude, pulse width, and rate, ensuring the pacemaker is operating correctly and safely. Its intuitive design and high accuracy make it a reliable device for performance validation and troubleshooting.
Technical Specifications:
| Feature / Parameter | Specification |
|---|---|
| Manufacturer | Bio-Tek Instruments, Inc. (now part of Fluke Biomedical) |
| Model / Part Number | PMA-1 / DALE 400 |
| Display | 2-line × 16-character LCD |
| Inputs | – Ventricle pacing signal: 0–12 V, 25 mA, 500 Ω load |
| – Atrial pacing signal: 0–12 V, 25 mA, 500 Ω load | |
| – Transthoracic pacing signal: 0–40 V, 250 mA, 50 Ω load | |
| Outputs | – Parallel printer port |
| – Serial computer port | |
| Test Modes | – Otis Mode: Operate all tests from a computer, with print-strip details copied to the computer |
| – Interactive Mode: Full control, including some automatic testing, from a computer |
1X Used unit in stock.
Immediately available for dispatch, patient ready and this product is offered with a 3 month warranty period.
