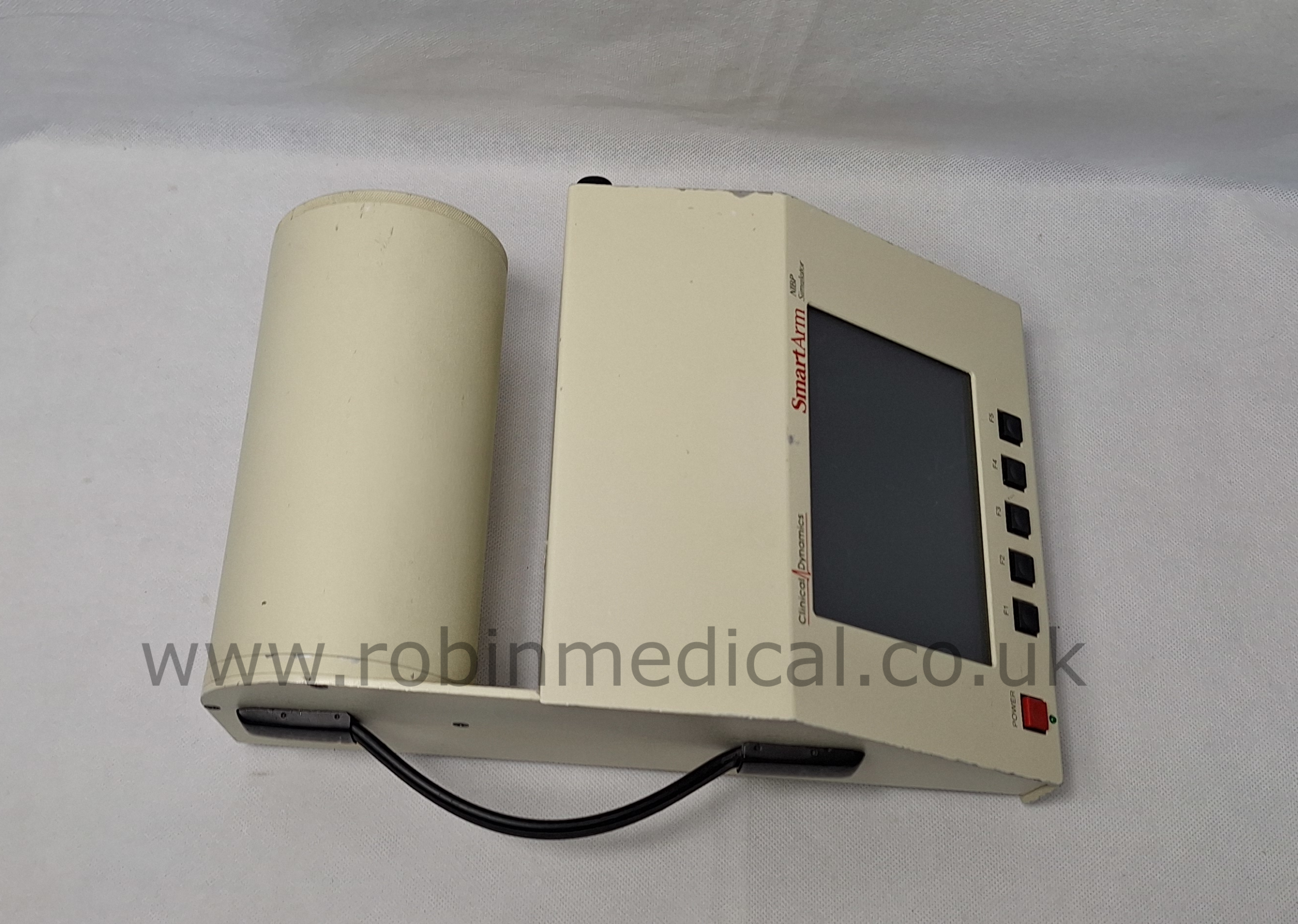

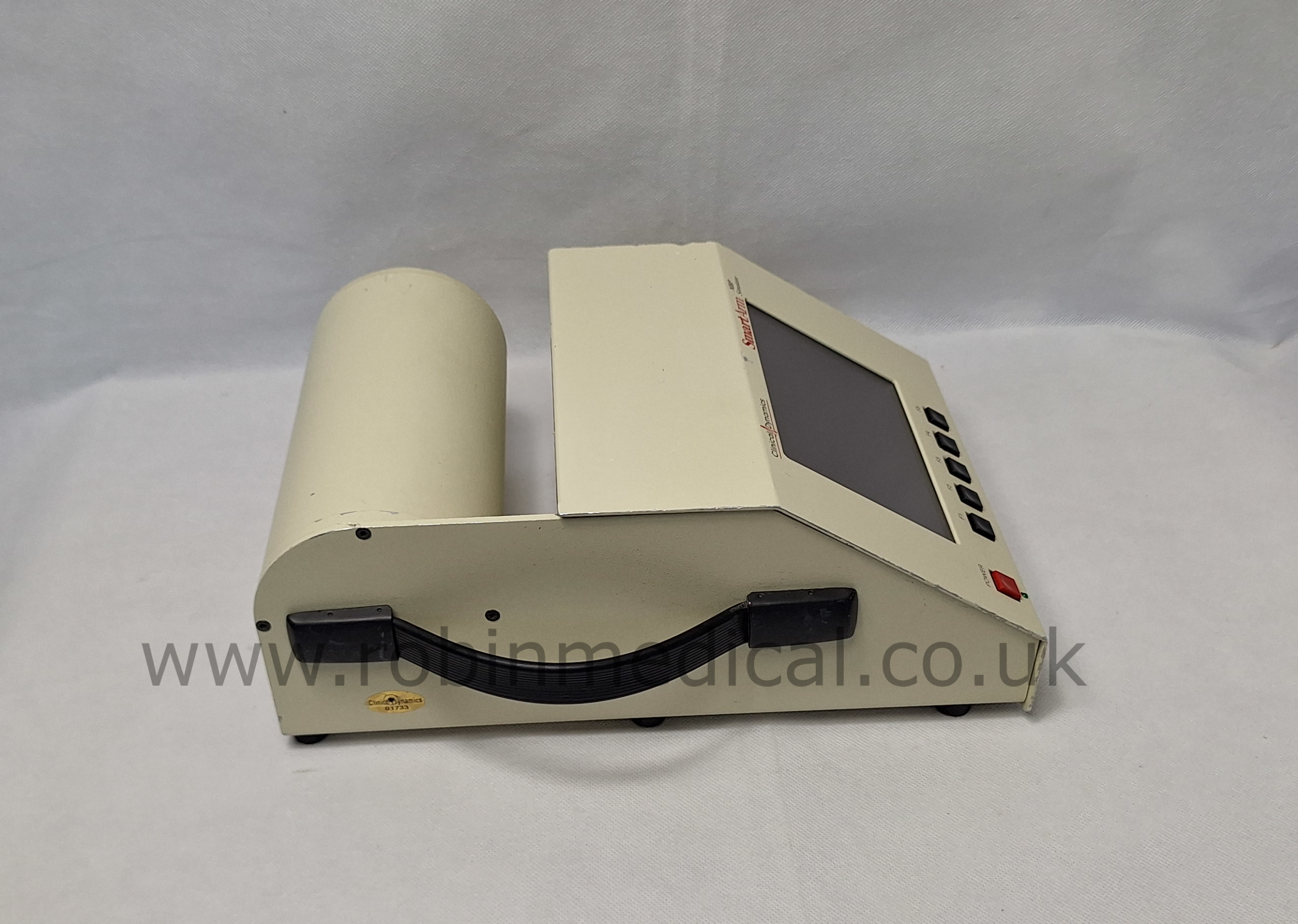

It is a portable unit that features built-in supports (mandrels) for both adult and neonatal cuffs, making it a comprehensive tool for NIBP monitor testing
Technical Specifications:
| Parameter: | Specification: |
|---|---|
| Manufacturer | Clinical Dynamics Corporation |
| Product / Model | SmartArm NIBP Simulator GX-2 |
| Dimensions (W × H × D) | 7.75″ × 4.75″ × 12.0″ (~197 × 121 × 305 mm) |
| Weight | ~8.75 lb (with internal battery) (~3.97 kg) |
| Input / Power | External adaptor: 100–240 V AC to 24 V DC; internal NiMH battery (optionally) |
| Pressure Range | Up to ~410 mmHg (simulate pressures) |
| Accuracy | ±0.5 mmHg resolution / traceable to NIST standards |
| Simulation Modes | Leak Test, Over-Pressure Test, BP Test (adult & neonatal) cdn.websites.hibu.com |
| Heartbeat / HR Range | Standard presets (e.g. 75 BPM adult, 120 BPM neonatal) plus adjustable 30–240 BPM in steps |

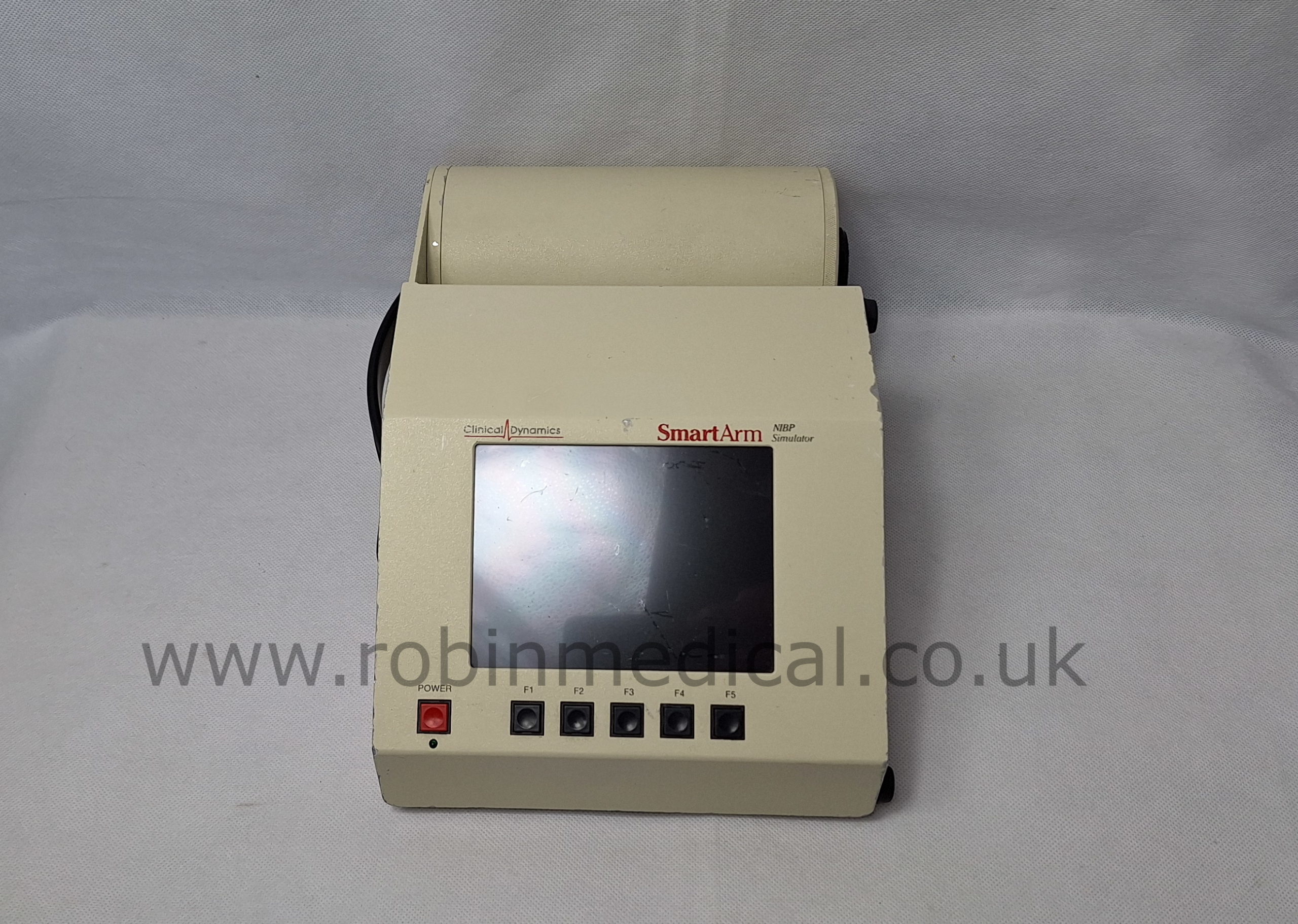

| Display | High-resolution graphical LCD display (320 × 240) with real-time cuff pressure waveform |
| Cuff Supports | Built-in adult & neonatal mandrels / supports |

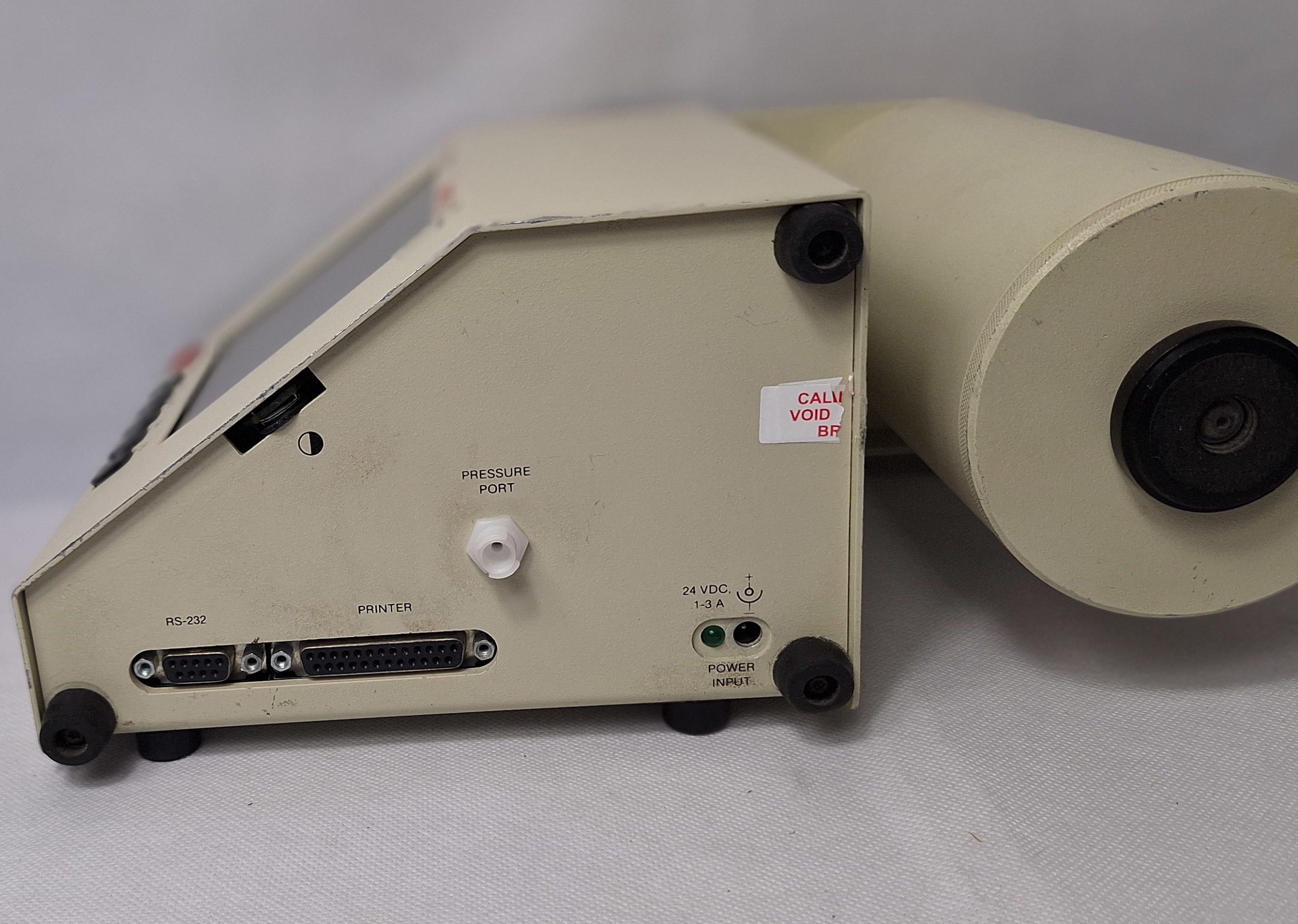

| Serial / Parallel Output | RS-232 serial control (remote commands) and parallel printing capability |
1X Used unit in stock.
Immediately available for dispatch and this product is offered with a 3 month warranty period.
Calibration can be requested separately, in order to make it compliant with medical use.
