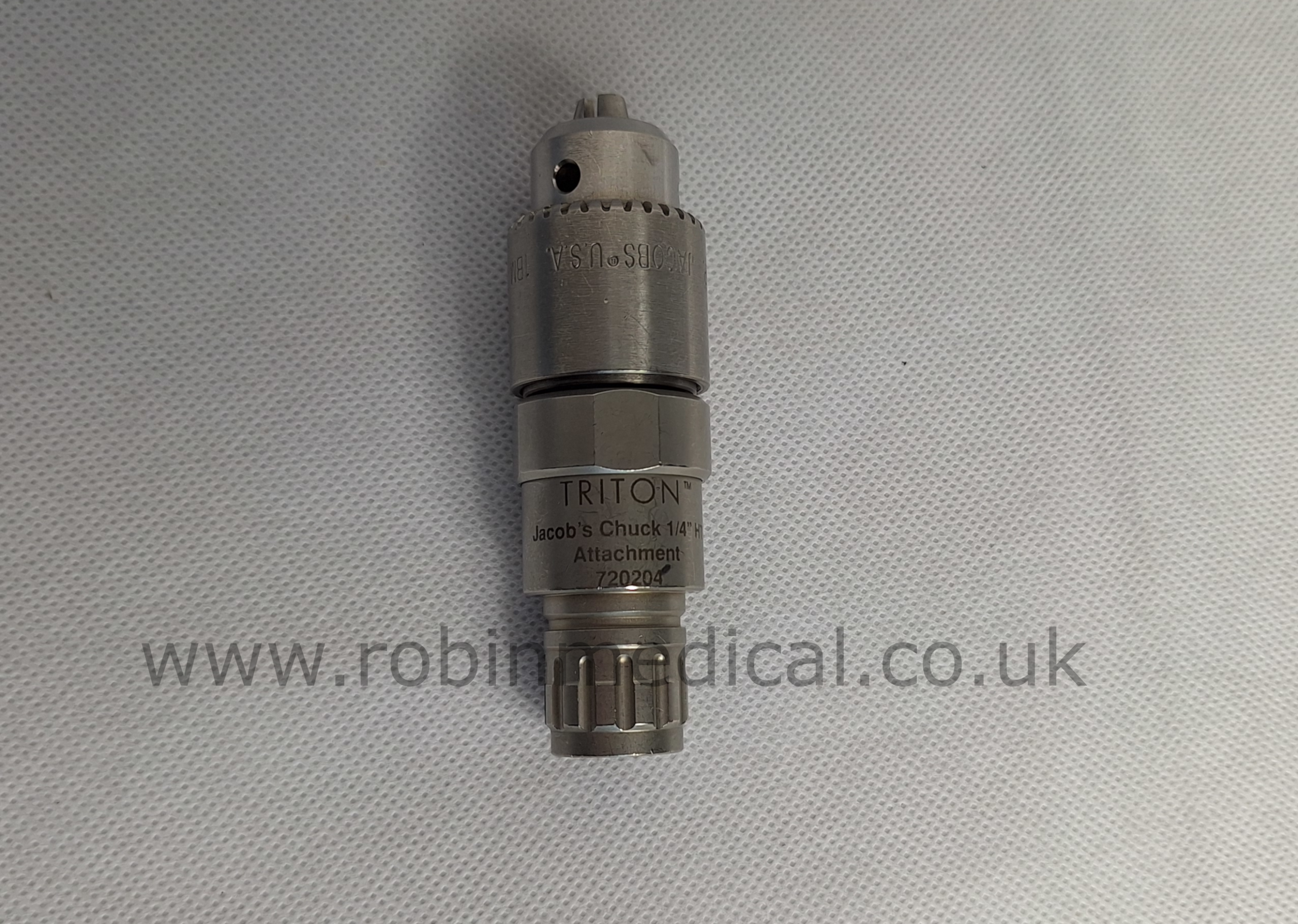

The Medtronic Triton 720204 Jacobs Chuck is a key-operated drill chuck attachment designed for the Medtronic Triton High-Torque Surgical Instrument System. It facilitates secure clamping of drill bits ranging from 0 to 1/4 inch (0 to 6.5 mm) in diameter, making it suitable for various orthopaedic and neurosurgical procedures. The chuck features a 3/8–24 threaded attachment interface, ensuring compatibility with the Triton handpiece.
Technical Specifications:
| Feature / Parameter | Specification |
|---|---|
| Manufacturer | Medtronic |
| Model Number | REF: 720204 |
| Chuck Capacity | 0.8 mm to 6.35 mm (1/32″ to 1/4″) |
| Attachment Thread | 3/8–24 |
| Material | Stainless steel |
| Compatibility | Medtronic Triton High-Torque Surgical Handpiece |
| Intended Use | Secures and drives drill bits and reamers |
| Sterilization | Autoclavable |
