Sonosite M-Turbo + ICTx 8-5MHz P07690-20 Transducer Probe
1 in stock
£1,990.00
1 in stock
Sonosite M-Turbo Ultrasound System
The Sonosite M-Turbo is a premium portable ultrasound system engineered to deliver high-resolution diagnostic imaging in both hospital and field environments. Designed for efficiency and durability, it is widely used in emergency medicine, critical care, anaesthesia, and musculoskeletal diagnostics. With a compact design, rapid boot-up time, and intuitive interface, the M-Turbo allows clinicians to make faster and more confident clinical decisions at the point of care.
Built to military-grade durability standards, the system resists drops, spills, and extreme conditions—ideal for demanding clinical settings. Its imaging performance is powered by SonoMB® and Advanced Needle Visualization (ANV) technologies, which enhance clarity, contrast, and procedural accuracy. The M-Turbo supports a wide range of transducers, from curved to phased array and linear probes, ensuring adaptability across specialties including cardiology, abdominal, vascular, OB/GYN, and orthopaedics.
Technical Specifications
| Specification | Detail |
|---|---|
| System Type | Portable ultrasound system |
| Display | 10.4" high-resolution anti-glare LCD (TFT) with wide viewing angles |
| Image Modes | 2D, M-Mode, Color Doppler, Power Doppler Imaging (PDI), Pulsed Wave Doppler |
| Supported Transducers | C60x, HFL38x, ICTx, L38, P17, P21x, C11x, P10x, D2x, L25x |
| Frequency Range | 1 – 13 MHz (depending on transducer) |
| Boot-Up Time | Under 15 seconds |
| Data Storage | Built-in memory, CompactFlash card slot, USB export capability |
| Connectivity | USB, VGA, S-Video, Composite video out, Ethernet |
| Battery Life | Up to 2 hours (removable lithium-ion battery) |
| Dimensions (H x W x D) | 7.9 x 29.5 x 31.4 cm |
| Weight | Approx. 3.04 kg (6.7 lbs) |
| Durability Rating | Drop-tested to MIL-STD-810F military specifications |
| Compatible Carts | Sonosite Mobile Docking Cart, Triple Transducer Connect |
Highlights
-
Advanced image processing with SonoMB® and Advanced Needle Visualization
-
Boots up in under 15 seconds for time-critical environments
-
Military-grade build quality for rugged use in any clinical setting
-
Wide selection of compatible transducers across multiple clinical specialties
-
Portable and lightweight with integrated handle and battery operation
-
Designed for intuitive, single-operator workflows

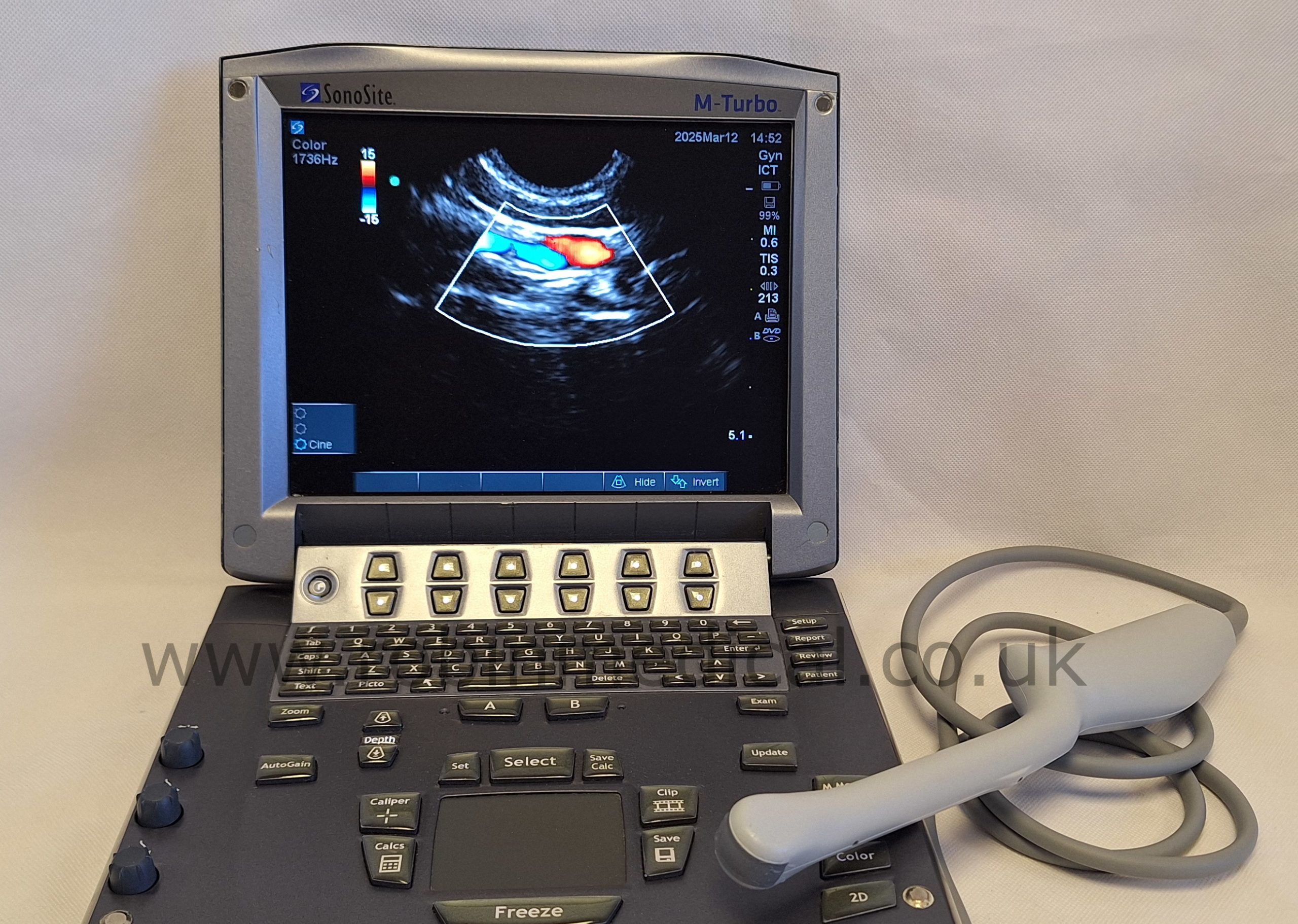

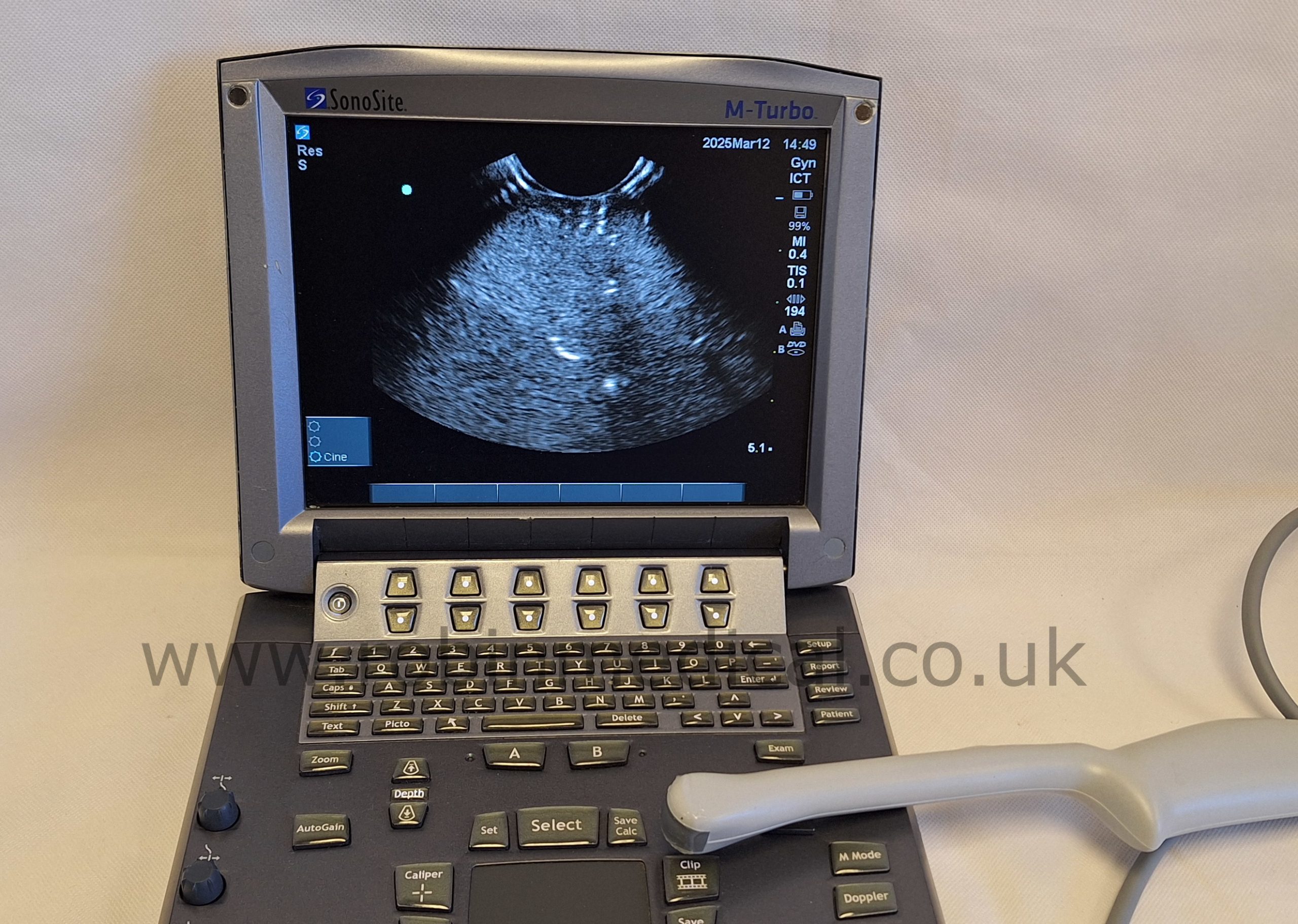

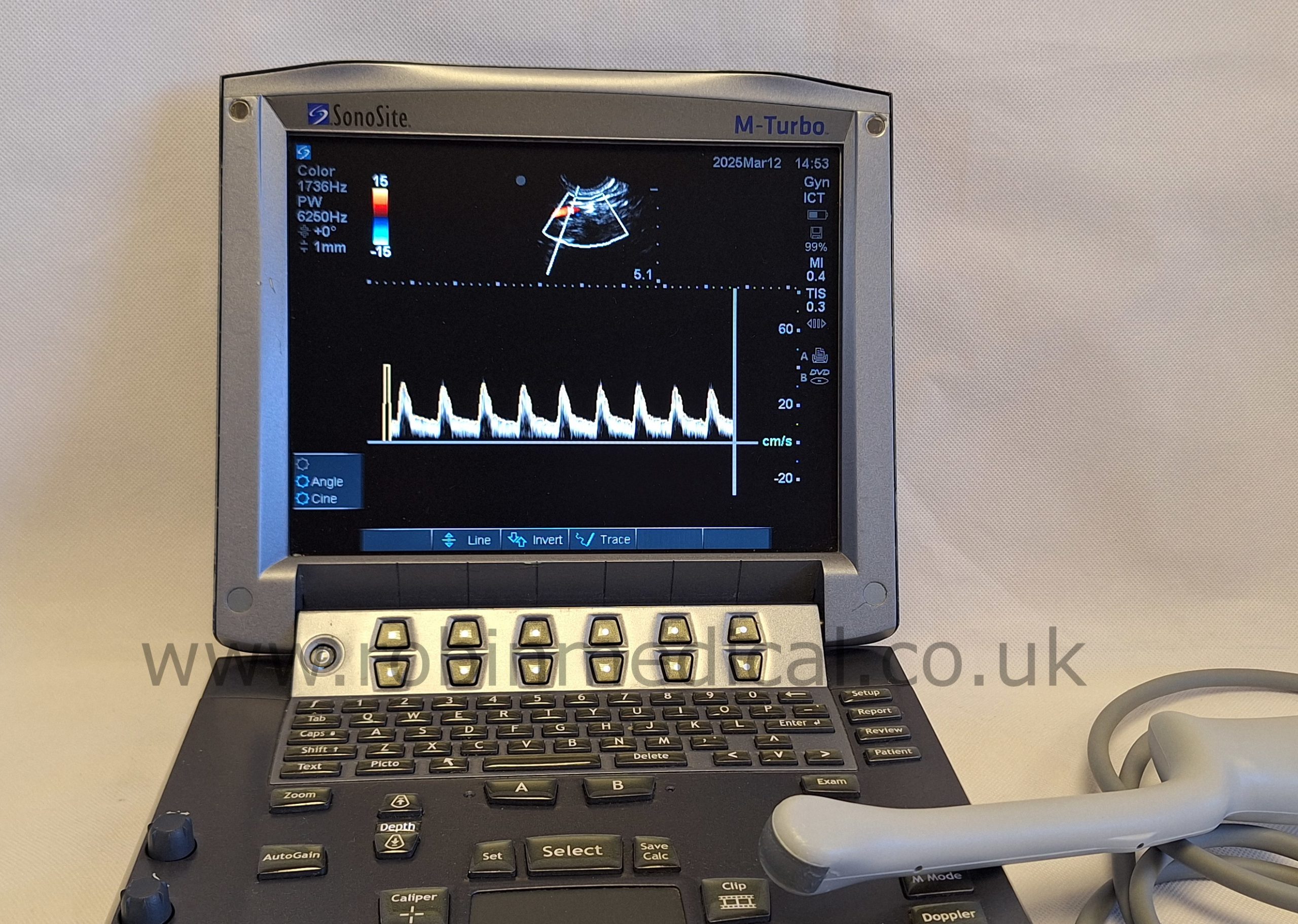

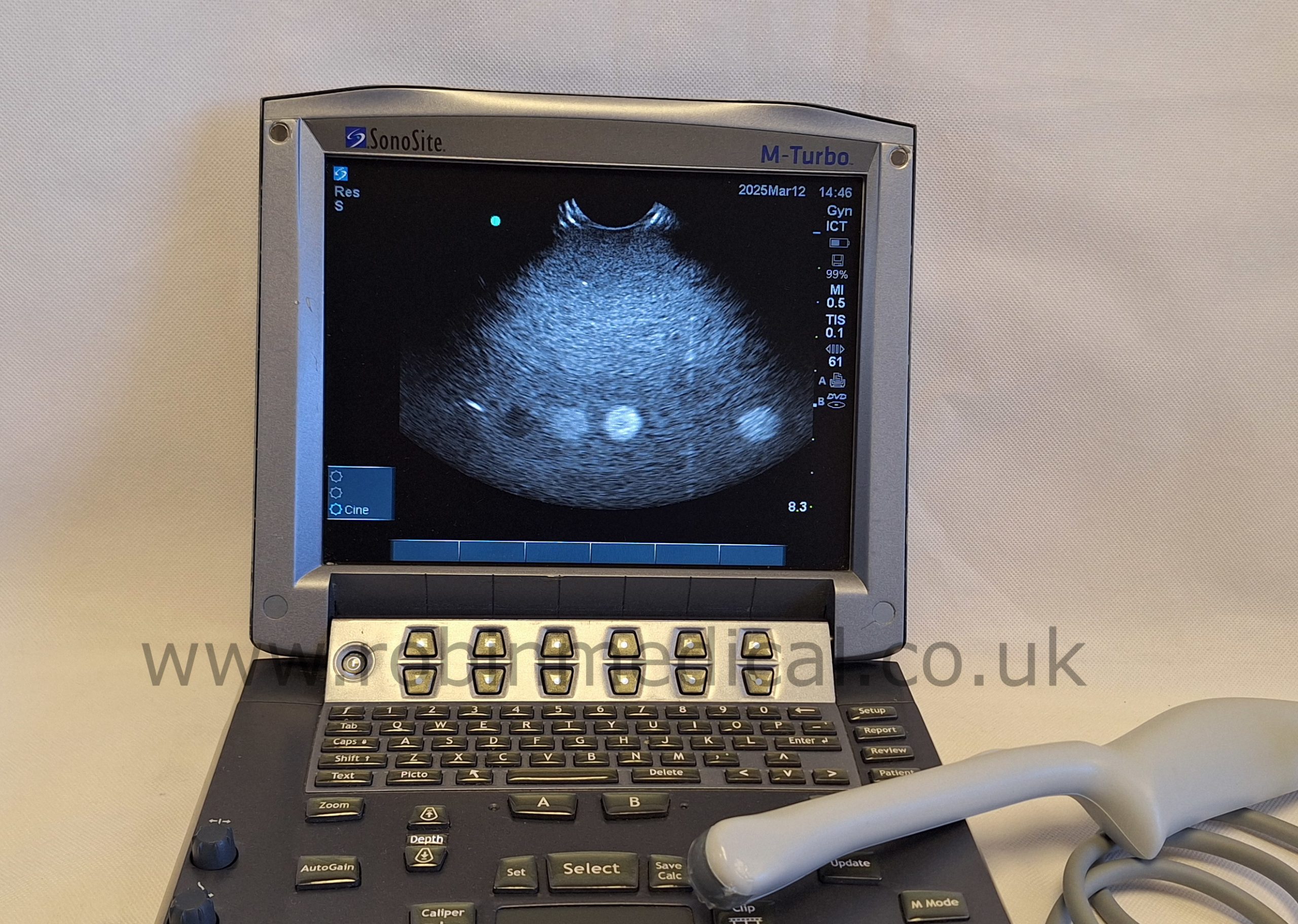

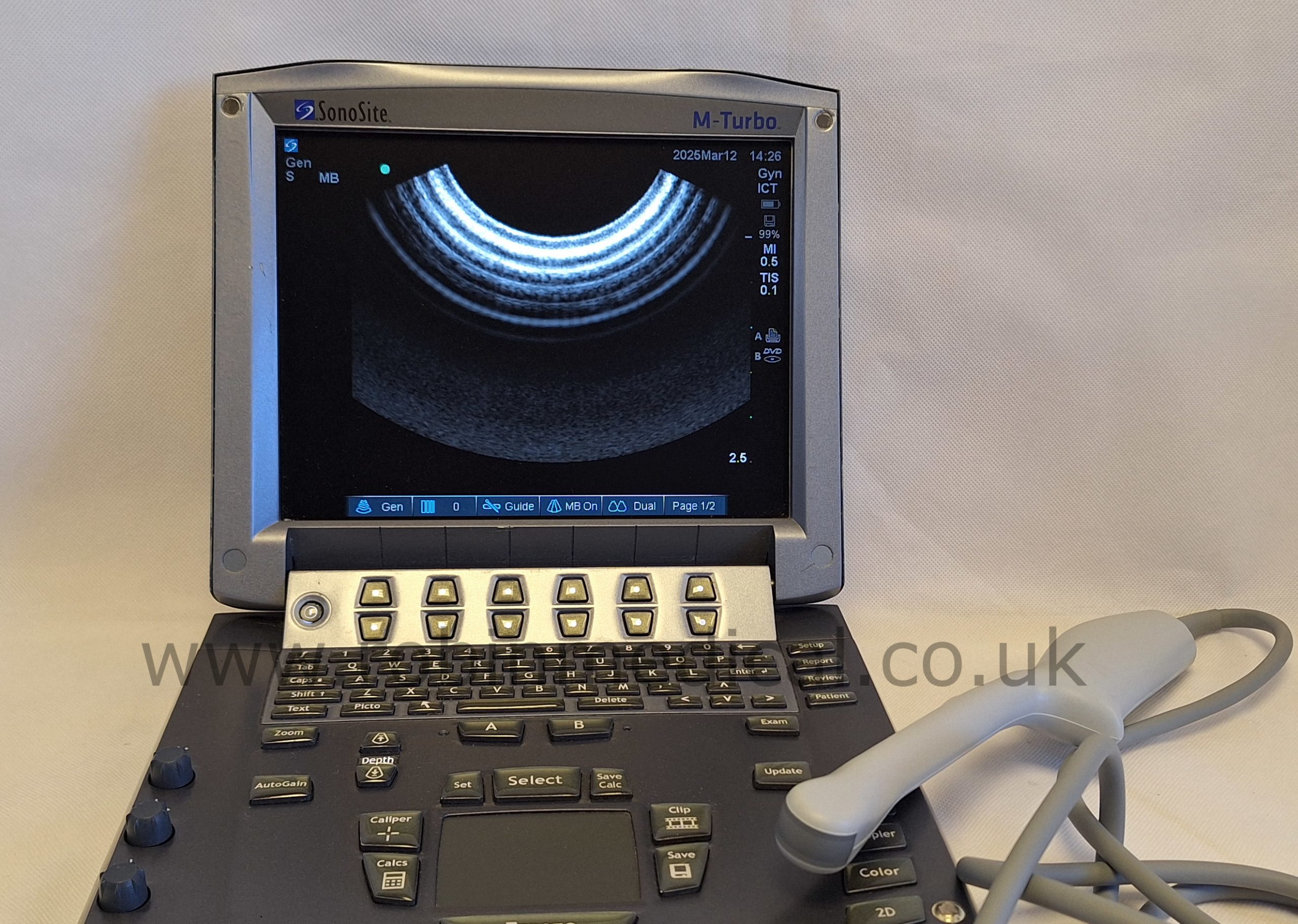

Probe in photos for demonstration purposes only.

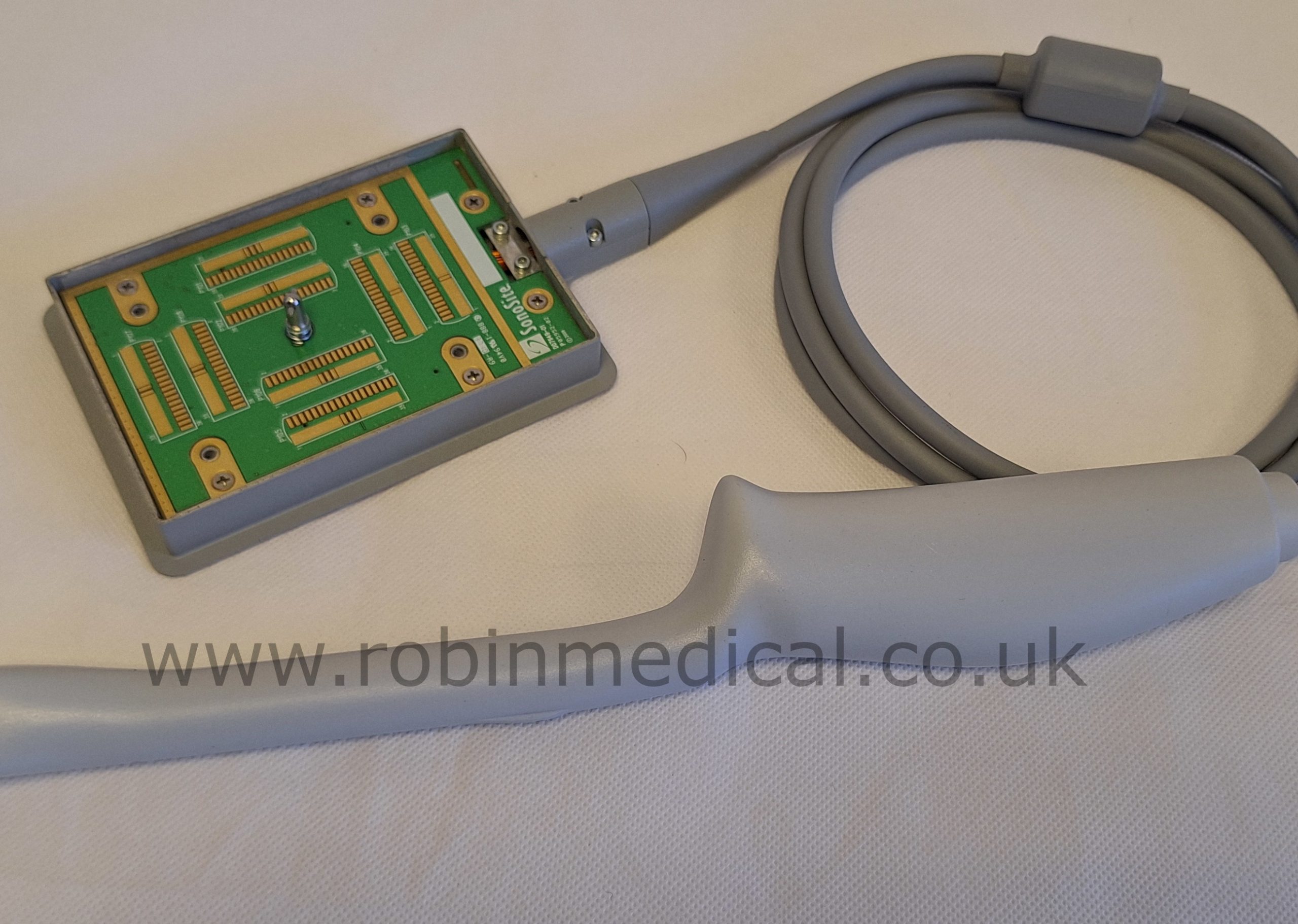

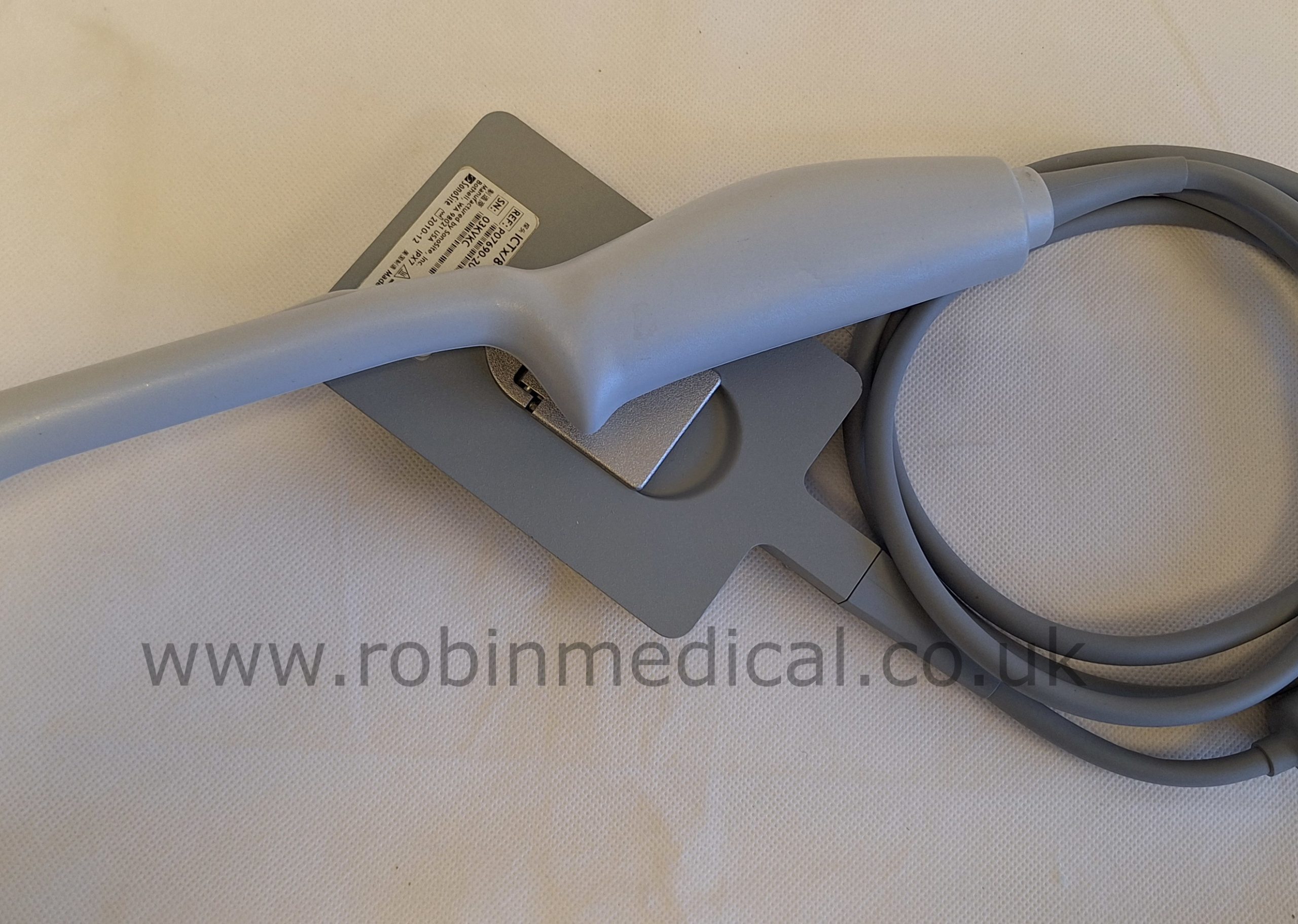

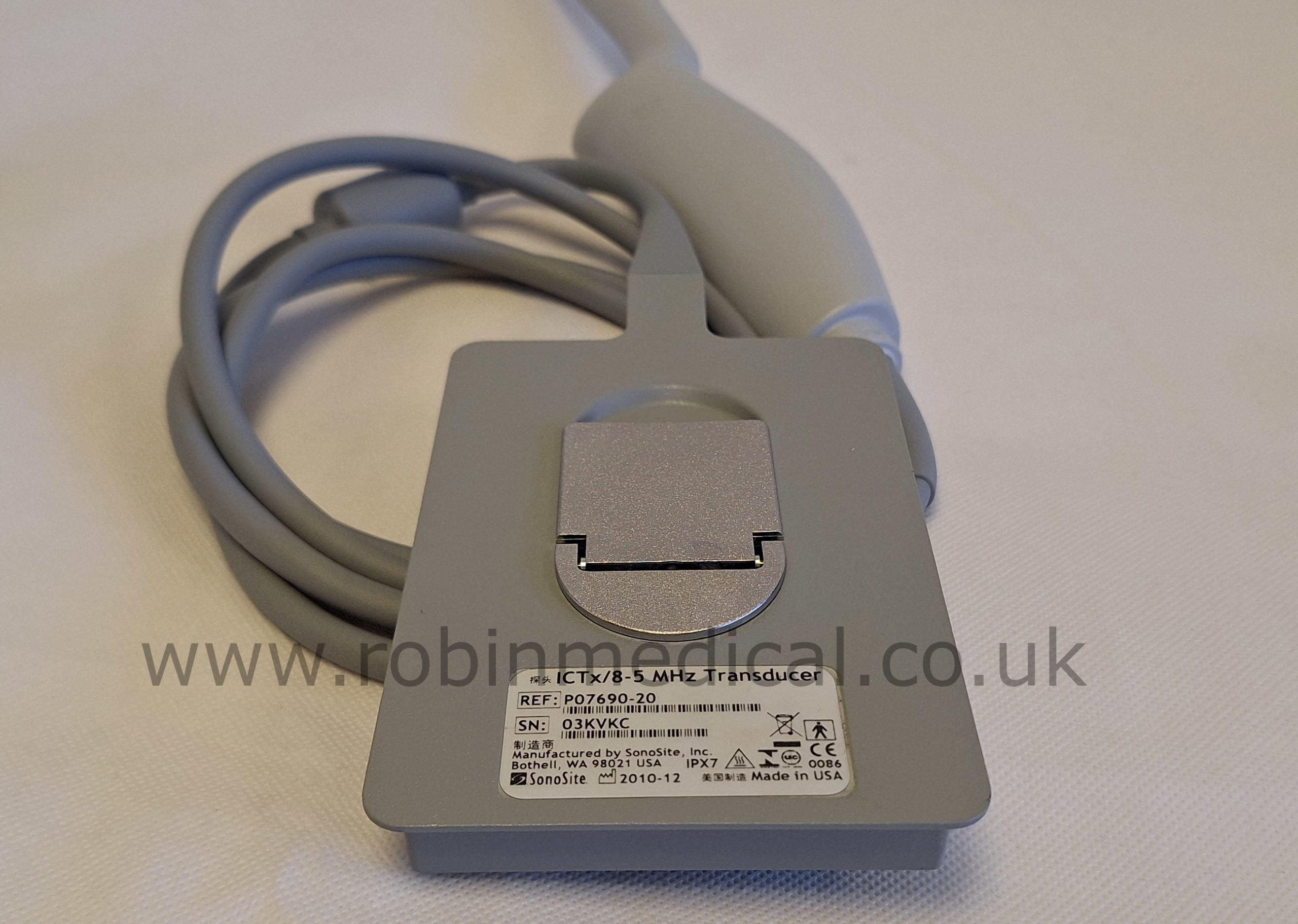

Sonosite ICTx 8-5MHz P07690-20 Transducer Probe
The Sonosite ICTx 8–5 MHz P07690-20 is a compact intracavitary curved array transducer designed for high-resolution imaging in internal exams such as endovaginal and endorectal applications. With its slim 11 mm footprint and broad frequency range, it enables accurate visualization at shallow depths while maintaining excellent image quality. Compatible with a range of Sonosite portable ultrasound systems, the ICTx is built for precision and clinical efficiency.
Technical Specifications
| Specification | Detail |
|---|---|
| Model Number | P07690-20 |
| Transducer Type | Intracavitary Curved Array |
| Frequency Range | 8–5 MHz |
| Footprint | 11 mm |
| Maximum Scan Depth | 10 cm |
| Cable Length | Approx. 2.1 m |
| Weight | Approx. 0.55 kg |
| Applications | OB/GYN, Endovaginal, Endorectal, Urology |
| Compatible Systems | Sonosite MicroMaxx, M-Turbo, Edge, S Series |
| Sterilization | High-level disinfection |
Highlights
-
11 mm broadband curved array design
-
High-resolution imaging at up to 10 cm depth
-
Ideal for internal and pelvic applications
-
Lightweight, ergonomic form for better handling
-
Compatible with Sonosite portable systems including MicroMaxx, Edge, and M-Turbo
