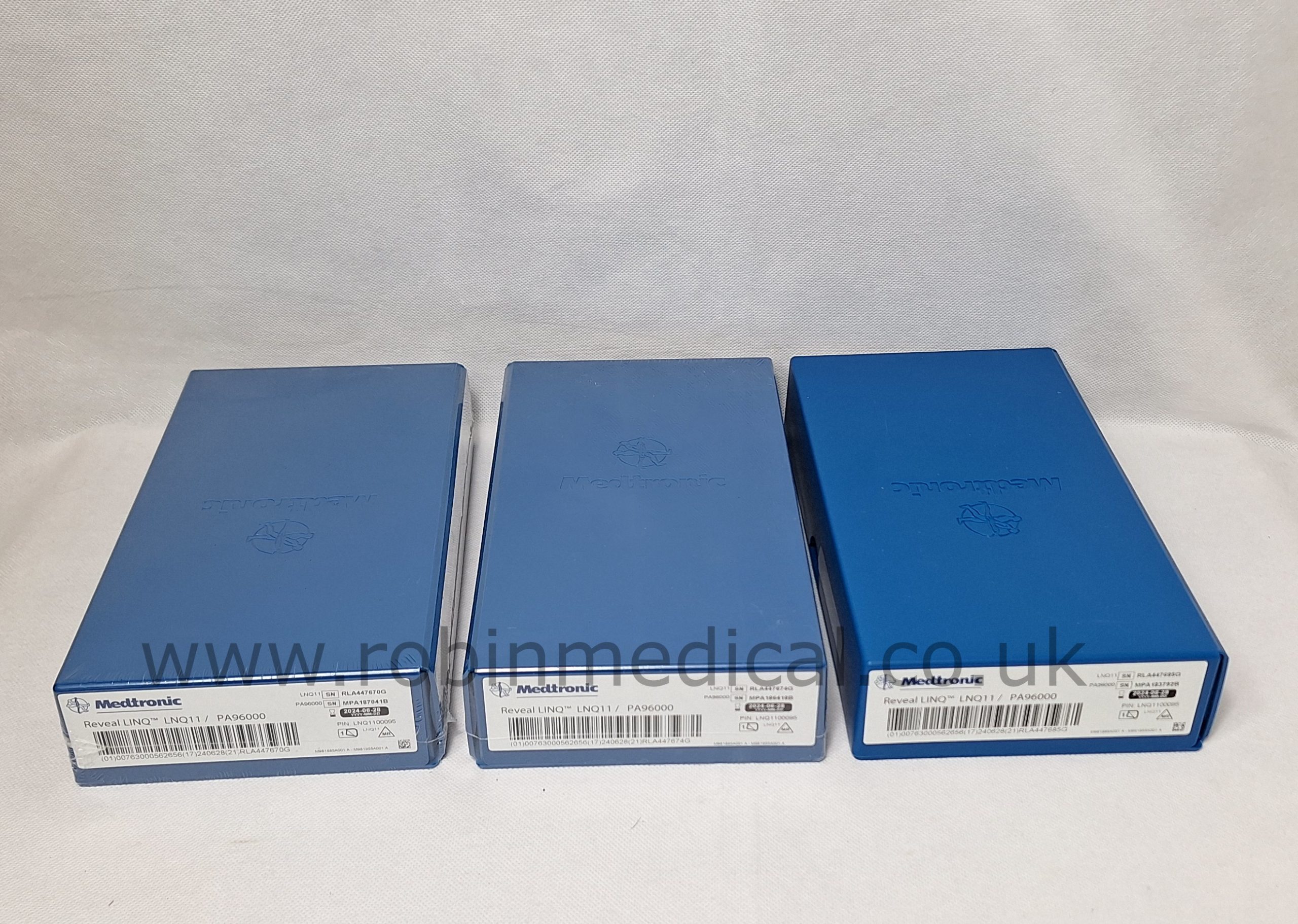

Medtronic Reveal LINQ LNQ11 Insertable Cardiac Monitor (Expired 24-6-28)
The item listed is expired and is intended solely for educational, training, or non-clinical research use. Any product details provided below, including the indication statement, apply only to in-date products.
£250.00
The Medtronic Reveal LINQ (Model LNQ11) is a miniaturized, subcutaneous insertable cardiac monitor (ICM) designed for long-term ECG monitoring in patients with unexplained syncope, palpitations, atrial fibrillation, or other suspected arrhythmias. It continuously senses, records, and stores subcutaneous ECG signals, including automatically detected arrhythmias and patient-triggered episodes. Its compact size and simplified insertion make it well suited to ambulatory monitoring with minimal patient burden.
Because the units are “expired” (i.e. past manufacturer usage / sterility date), it cannot be used in a patient but is still valuable for training, demonstration, or non-clinical research purposes.
Technical Specifications:
| Specification | Detail / Notes |
|---|---|
| Manufacturer / Brand | Medtronic |
| Model / REF | Reveal LINQ, LNQ11 |
| Device Type | Insertable Cardiac Monitor (ICM) |
| Dimensions | 44.8 mm × 7.2 mm × 4.0 mm (HxWxD) |
| Volume / Size | ~1.2 cc (small, one third the size of an AAA battery) |
| Battery / Longevity | Up to ~3 years under typical usage |
| MRI Safety | MR conditional at 1.5T and 3T under specified conditions |
| Recall / Safety Notice | Model LNQ11 was subject to a Class II recall due to a software issue that could cause premature RRT (Recommended Replacement Time) alerts. A later device-correction was issued for LINQ with TruRhythm (partial electrical reset issue) in 2021. |
3X New units in stock.
Immediately available for dispatch as is.
