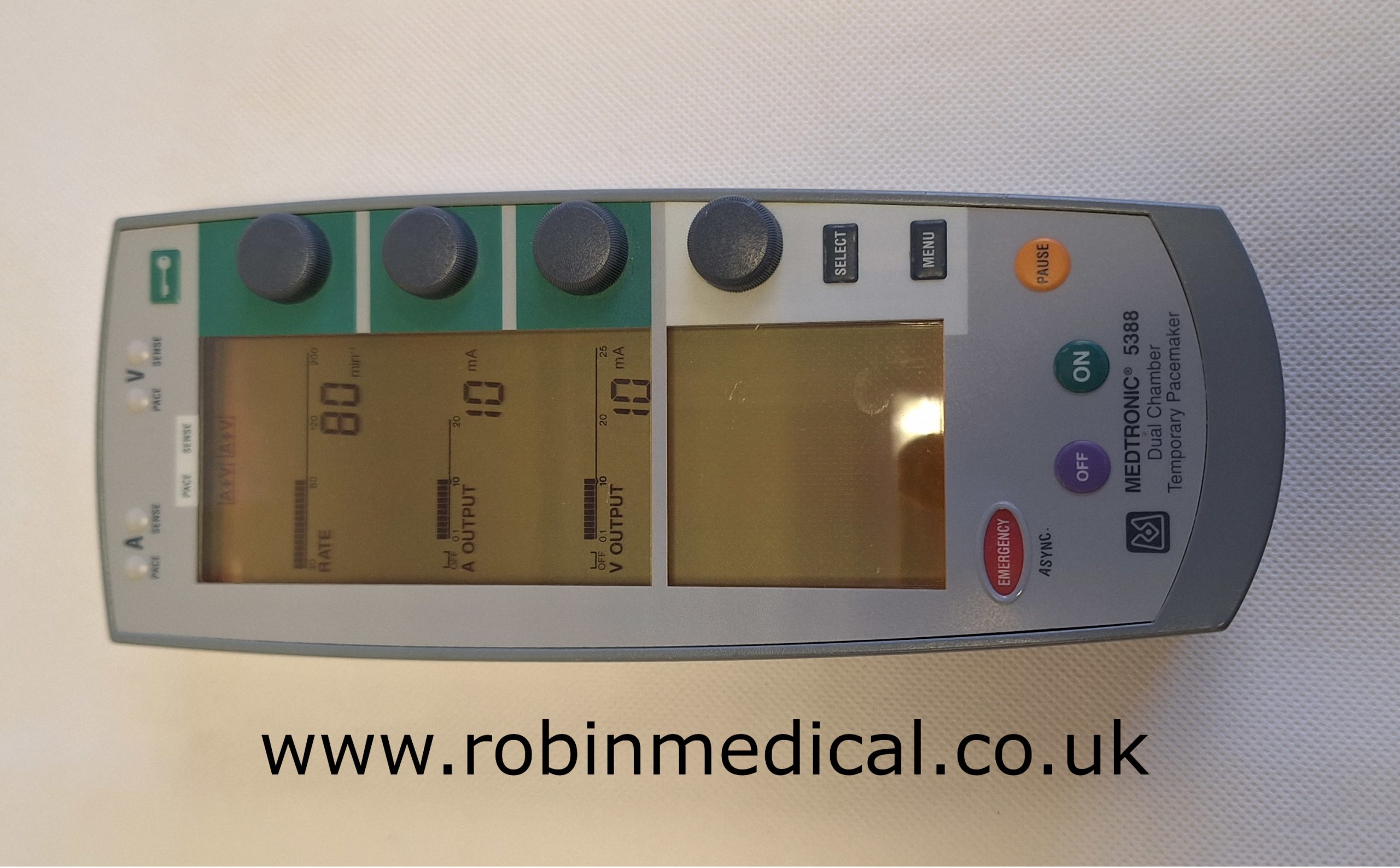

Medtronic 5388 dual-chamber temporary pacemaker
The Medtronic 5388 is a temporary pacemaker with two chambers that offers eight different pacing therapy modes. This battery-operated Medtronic pacemaker is typically coupled with myocardial, epicardial, or transvenous pacing leads. Temporary single- or dual-chamber pacing is possible with it. Because of its constant current gadget, the pulse it emits remains constant.
- Model: 5388
- Operates with a 9V battery.
- DDD, DVI, DDI, DOO, VOO, VVI, AOO, and AAI pacing therapy modes.
- Compatible with Medtronic 5433A, Medtronic M5433V, Medtronic 5832, and Medtronic 5832S pacing and surgical cables.
- Weight: 510G
Immediately available for dispatch, patient ready and this product is offered with a 3 month warranty period.
The Medtronic 5388 is a dual-chamber temporary external pacemaker designed for hospital and clinical use. Engineered to provide temporary atrial and ventricular pacing, this advanced device supports both adult and pediatric patients. The 5388 offers intuitive controls, enhanced programmability, and a clear LCD interface, allowing clinicians to deliver precise pacing therapy during acute or post-operative cardiac care.
Technical Specifications
| Specification | Details |
|---|---|
| Model | 5388 |
| Manufacturer | Medtronic |
| Pacing Modes | DDD, DDI, DOO, AAI, AOO, VVI, VOO, VDD, VVT, VVI(R) |
| Chambers Paced | Atrial and Ventricular (Dual-Chamber) |
| Pacing Rate | 30–200 bpm |
| Output Range | 0.1–20 mA (Ventricular); 0.1–10 mA (Atrial) |
| Pulse Width | 0.1–1.5 ms |
| Sensitivity Range | 0.5–10 mV (Ventricular); 0.25–10 mV (Atrial) |
| Refractory Periods | Adjustable atrial and ventricular |
| AV Delay | 30–300 ms (programmable) |
| Display | Backlit LCD with real-time waveform display |
| Power Supply | 9V alkaline battery or external power source |
| Battery Life | Approx. 7 days continuous use (typical) |
| Dimensions | Approx. 13 × 9 × 3.5 cm (L × W × H) |
| Weight | Approx. 400 g (with battery) |
| Certifications | FDA cleared, CE marked, ISO 13485 |
Key Features
-
Supports both single and dual-chamber pacing modes
-
Real-time pacing feedback and diagnostics via backlit LCD
-
Easy-to-use interface for rapid programming in critical settings
-
Compact, portable, and durable for use in a variety of clinical scenarios
-
Adjustable AV delay and refractory periods for customized therapy
-
Battery-powered for standalone use or via external power connection
-
Designed for temporary pacing during surgery, post-op recovery, or emergenci
