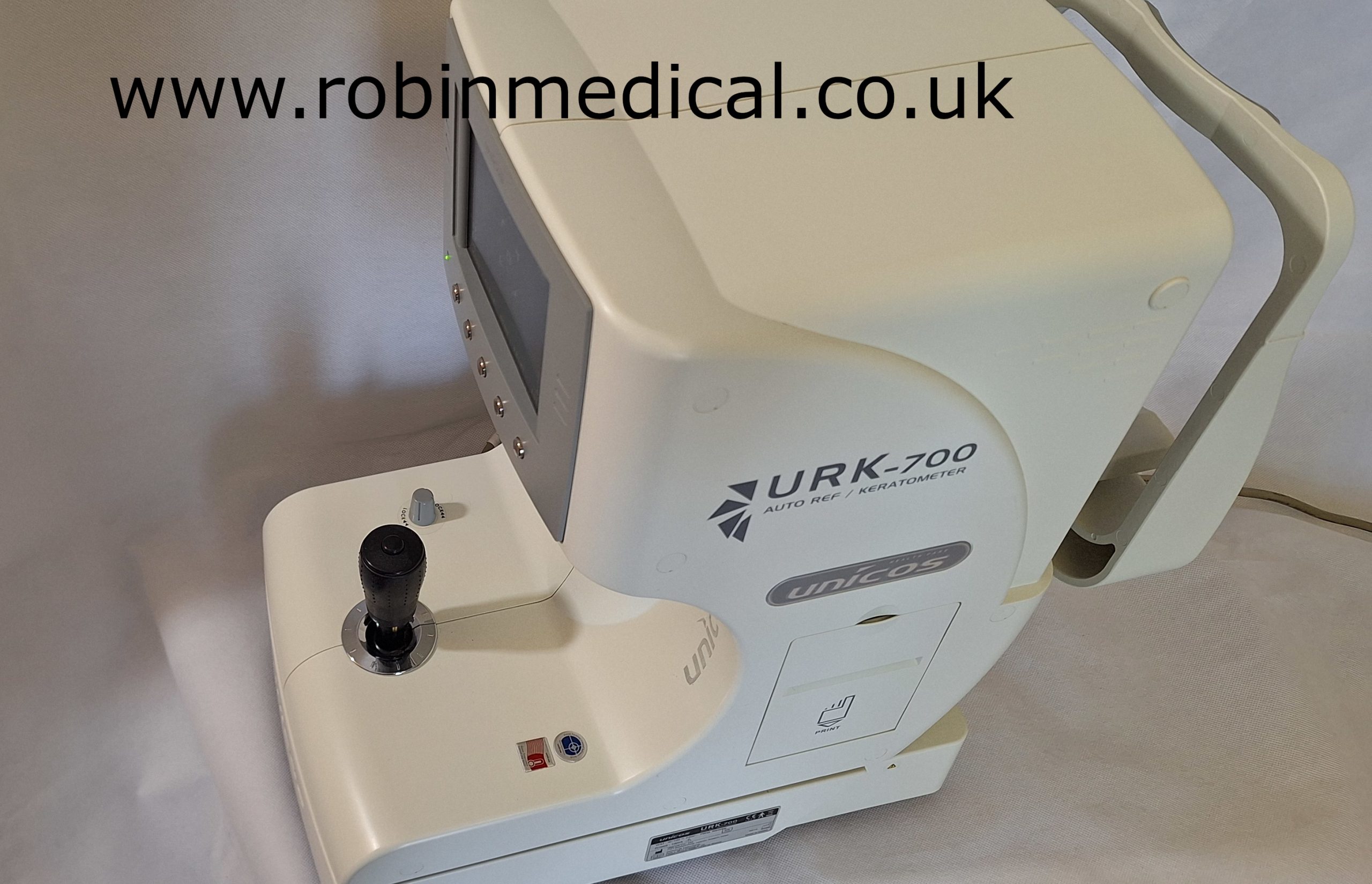

Unicos URK-700 Auto Refractor/Keratometer
- Model: URK-700
Immediately available for dispatch, patient ready and this product is offered with a 3 month warranty period.
The Unicos URK-700 Auto Refractor/Keratometer is a highly accurate and easy-to-use diagnostic device designed to measure both refractive error and corneal curvature. Ideal for ophthalmology and optometry practices, it offers fast, precise results with a user-friendly interface and a high-resolution touchscreen display. Its ergonomic design, automatic measurement capabilities, and integrated printer make it a reliable tool for efficient patient assessments.
Technical Specifications
| Specification | Details |
|---|---|
| Model | URK-700 |
| Manufacturer | Unicos Co., Ltd. |
| Measurement Type | Auto Refractor and Keratometer |
| Sphere Range | -30.00 D to +25.00 D (0.01/0.12/0.25 D steps) |
| Cylinder Range | 0.00 D to ±12.00 D |
| Axis Range | 0° to 180° (1° step) |
| Pupil Distance Range | 10 mm to 85 mm |
| Keratometry Range | 5.0 mm to 11.0 mm Radius (30.00 D to 67.50 D) |
| Minimum Pupil Diameter | 2.0 mm |

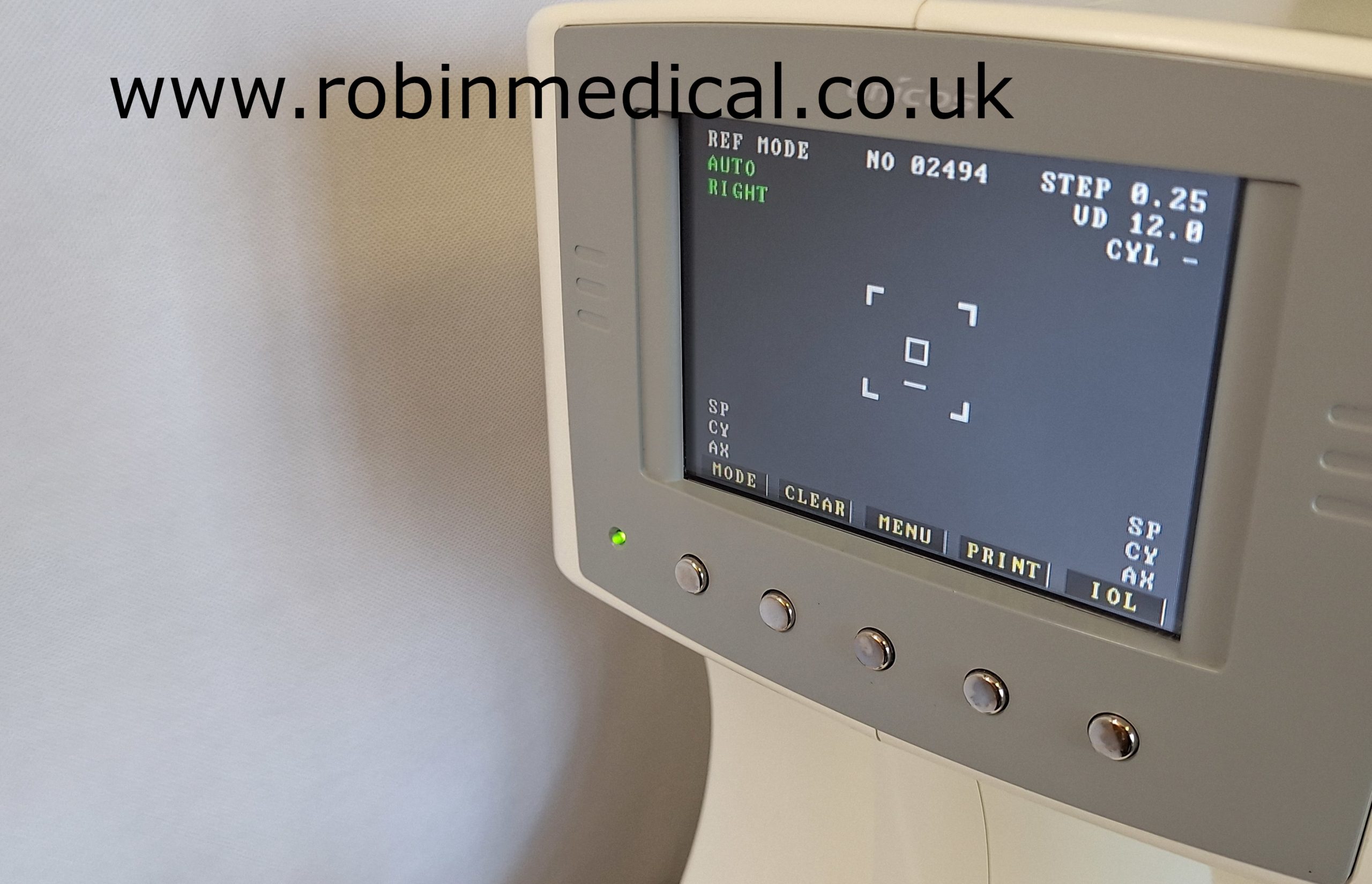

| Display | 7″ Color TFT LCD with touchscreen |
| Printer | Built-in thermal printer |
| Interface | USB / RS-232C |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Dimensions | Approx. 275 × 505 × 430 mm (W × D × H) |
| Weight | Approx. 18 kg |
Key Features
-
Combines auto refraction and keratometry in a single device
-
Fast, precise measurements with minimal patient discomfort
-
Intuitive touchscreen operation with user-friendly UI
-
Automatic start and auto-shot measurement functionality
-
Built-in high-speed thermal printer for immediate printouts
-
Adjustable chin rest and motorized alignment system
-
Compact and sleek design optimized for clinical environments
-
Wide measurement ranges suitable for various patient needs
