Sonosite MicroMaxx Ultrasound System + P17 5-1 MHz P06073-17A Transducer Probe 1
1 in stock
£1,700.00
1 in stock

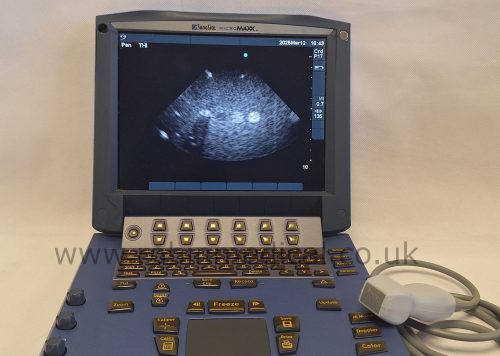

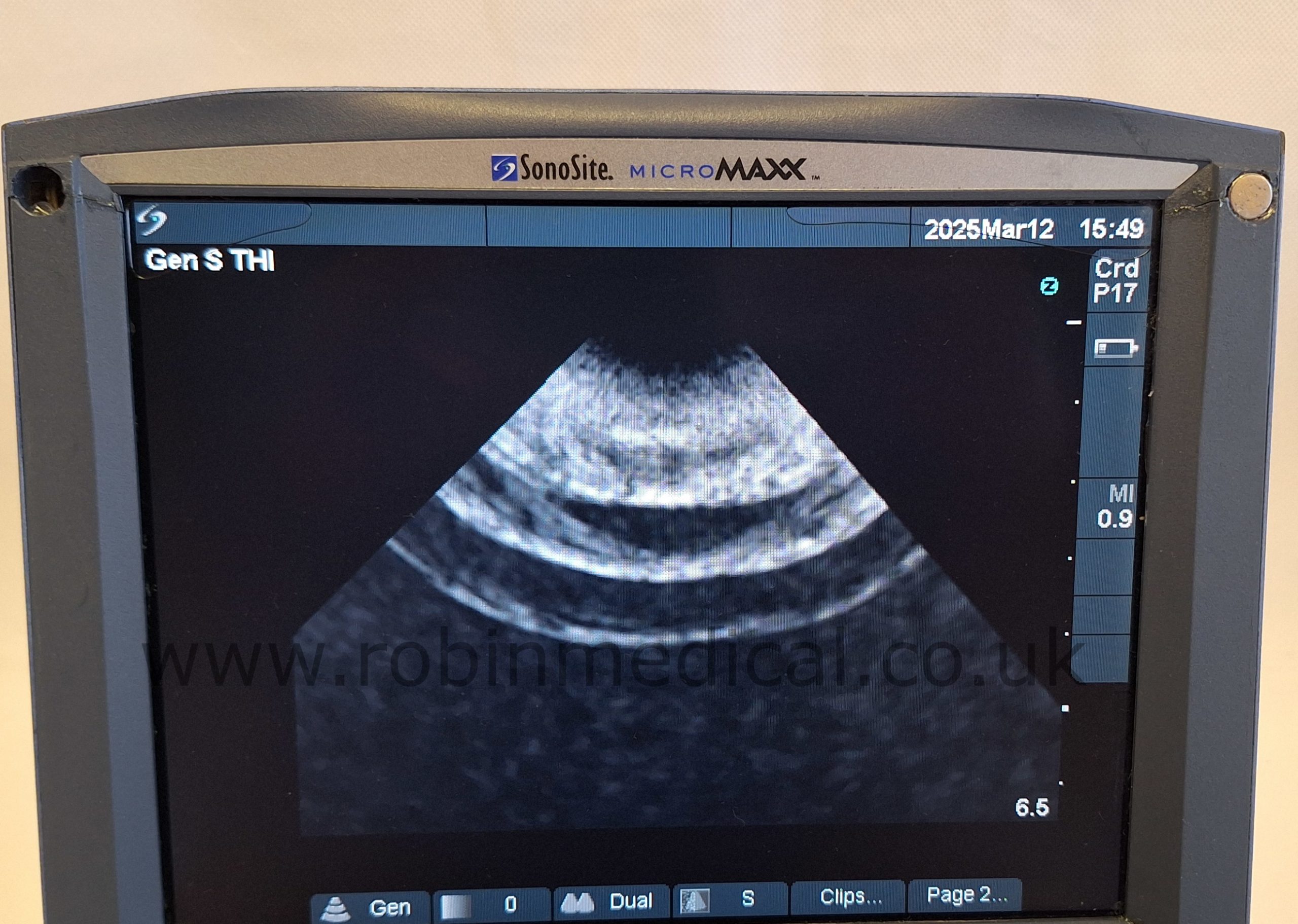

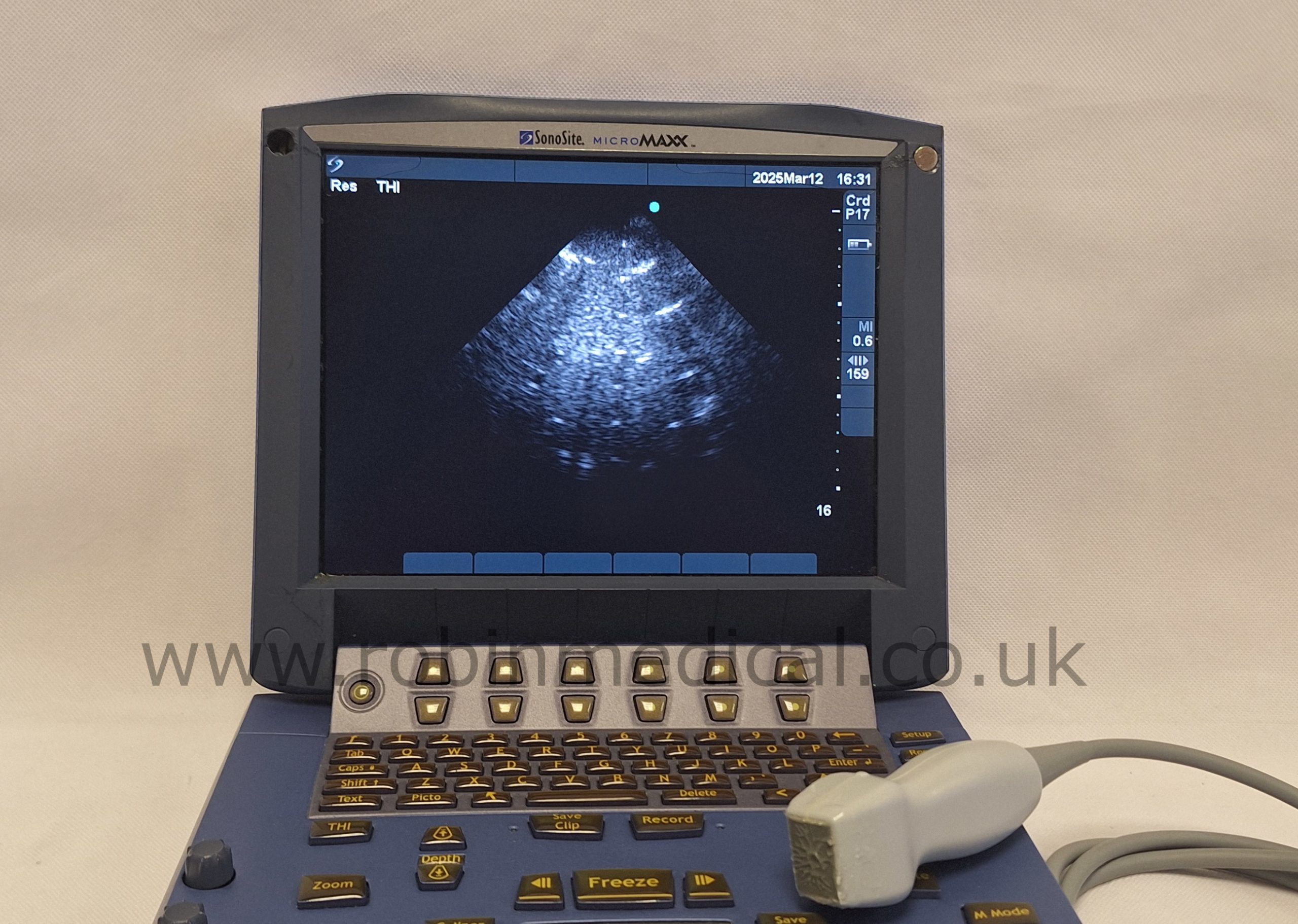

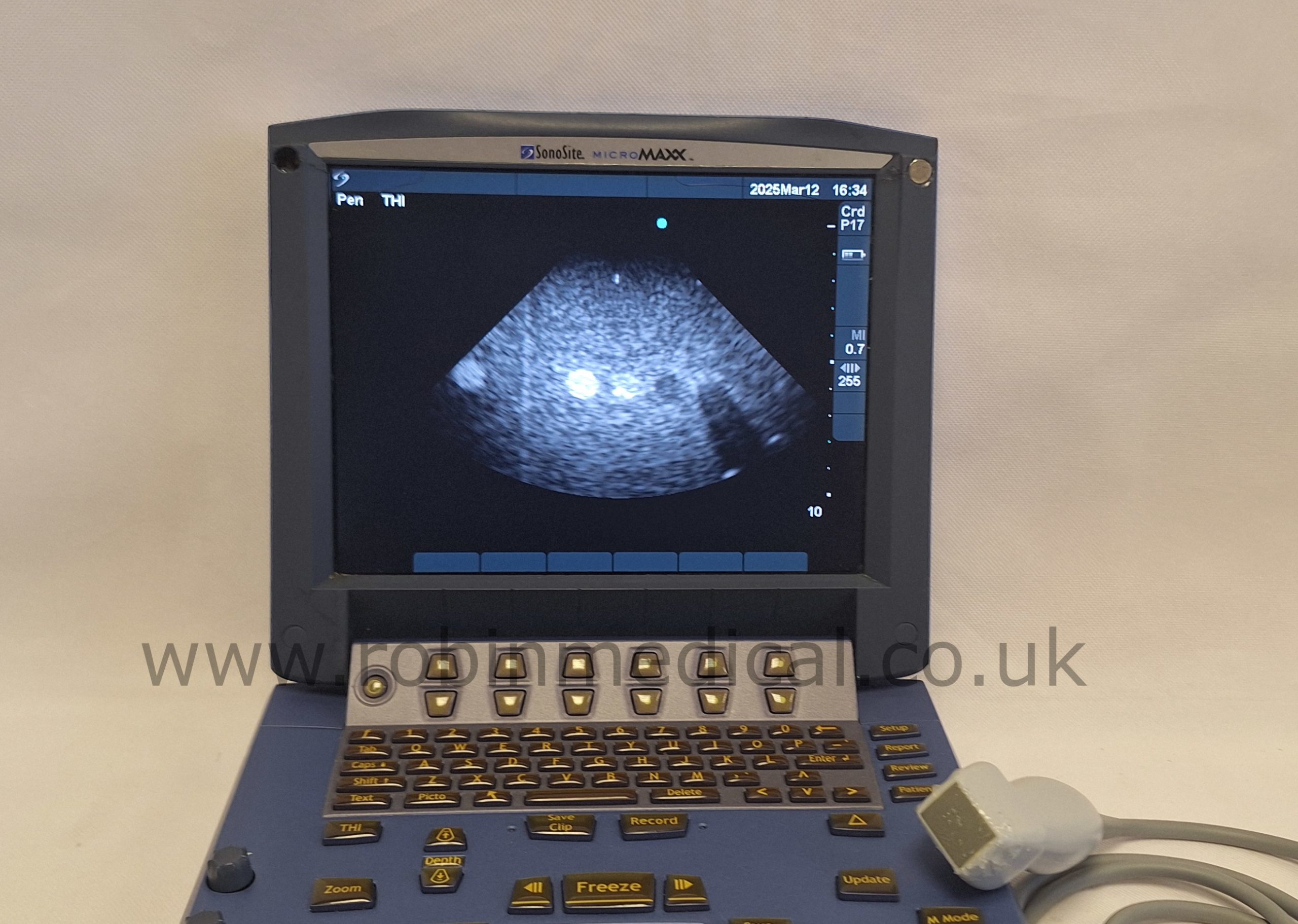

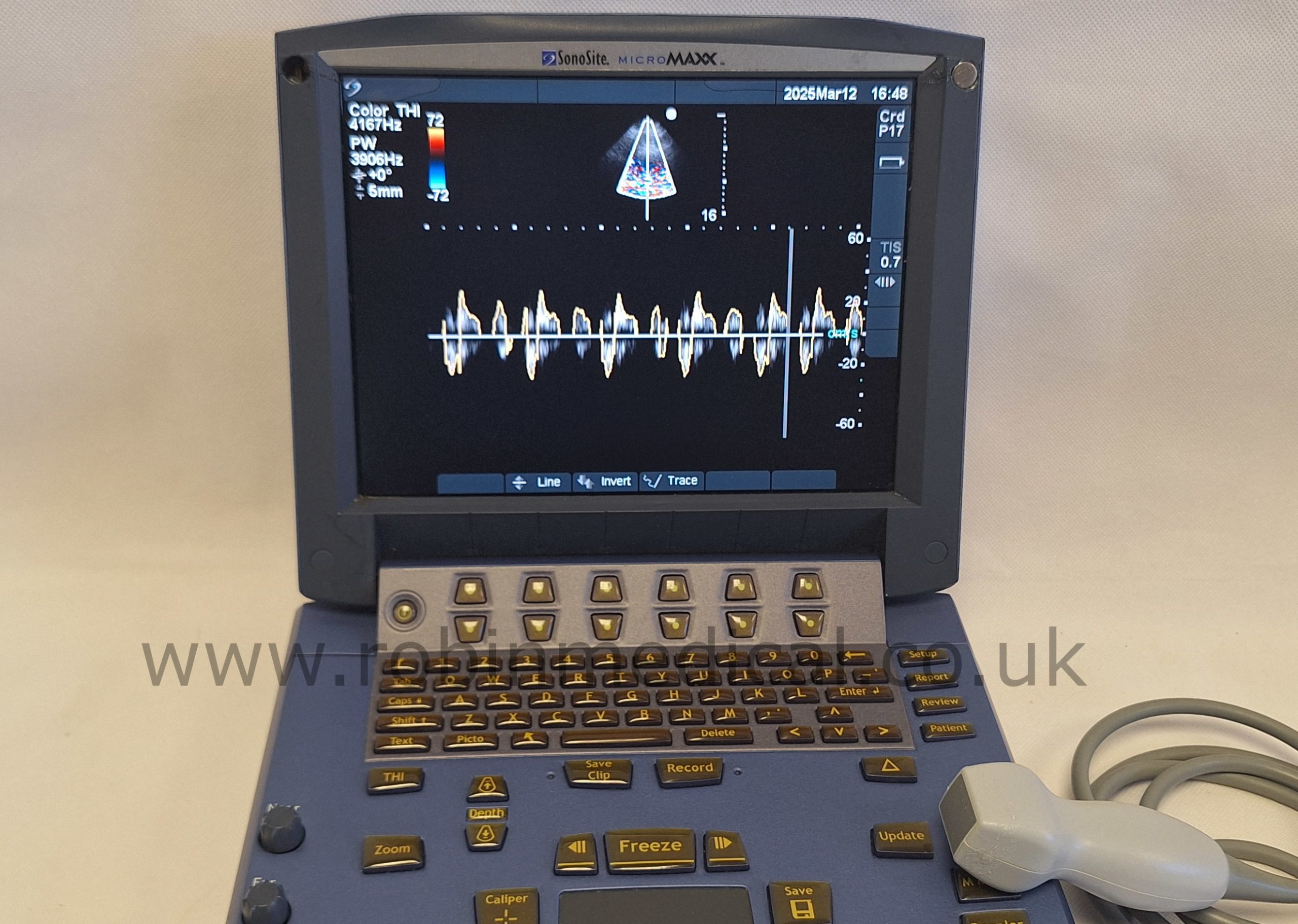

Sonosite MicroMaxx Ultrasound System
The Sonosite MicroMaxx Ultrasound System is a compact, portable imaging solution built for reliable diagnostics across a variety of clinical settings. Featuring a 10.4" high-resolution LCD display, a sealed, spill-resistant keyboard, and a fast boot-up time of under 20 seconds, it's ideal for point-of-care applications.
Engineered to military-grade durability, it’s drop-tested and splash-resistant, making it suitable for use in emergency departments, ICUs, and field hospitals. The MicroMaxx delivers sharp, detailed images using technologies like tissue harmonics, speckle reduction, and SonoMB™ multi-beam imaging.
It supports a broad range of transducers—including linear, convex, phased array, and intracavitary—with optional triple probe connectivity to streamline workflow. Powered by a lithium-ion battery, it offers up to two hours of scanning per charge. SonaROAM™ enables simple wireless data transfer, enhancing flexibility and efficiency.
With exceptional imaging performance, robust construction, and lightweight design (just 3.5 kg), the MicroMaxx is a versatile choice for real-time portable ultrasound imaging.
Technical Specifications
| Specification | Details |
|---|---|
| Model | MicroMaxx |
| Manufacturer | Sonosite, Inc. |
| Display | 10.4" Active Matrix LCD, high-resolution, anti-glare |
| Imaging Modes | 2D, M-mode, Color Doppler, Power Doppler, PW Doppler |
| Image Processing | Speckle reduction, tissue harmonics, dynamic range adjustments |
| Number of Channels | 128 channels |
| Dynamic Range | Up to 165 dB |
| Gray Scale | 256 shades |
| Transducer Ports | 1 active port (expandable to 3 with Triple Transducer Connect) |
| Supported Transducers | C11e, C60e, P17, ICTx, L38e, HFL38, L25e, C60x, C11x, P10x, TEE* |
| Transducer Frequency Range | 1 MHz – 13 MHz (depending on transducer) |
| Storage Capacity | Internal flash memory, up to 4 GB |
| Data Export Options | USB, CompactFlash card, DICOM (optional) |
| Connectivity | USB ports, S-Video out, optional Ethernet/DICOM |
| Battery Type | Rechargeable lithium-ion battery |
| Battery Life | Up to 2 hours continuous scanning |
| System Boot Time | Under 20 seconds from cold start |
| Dimensions (H x W x D) | 30.5 cm x 26.7 cm x 7.6 cm |
| Weight | Approx. 3.7 kg |
| Durability | Drop-tested, splash-resistant, sealed keyboard |
| Software Options | OB/GYN, Cardiology, MSK, Emergency, Anesthesiology (configurable) |
| Departments | Anesthesiology, Cardiology, Critical Care, Emergency Medicine, Musculoskeletal, Neurology, Obstetrics/Gynecology, Preventive Cardiology, Radiology, Surgery, Vascular, Vein Care |
Key Features
-
Under 20-second cold start for rapid response
-
Compact and lightweight for bedside and mobile use
- High-resolution imaging with advanced Doppler capabilities
-
Excellent image quality with advanced processing features
-
Wide probe compatibility for multi-specialty coverage
-
Battery-powered with long runtime for field environments
-
USB and CompactFlash data export for easy workflow integration
-
Rugged design with sealed control surface for clinical safety
The unit functions as per manufacturer specifications and the condition is exactly as shown in images.
Immediately available for dispatch, patient ready and this product is offered with a 3 month warranty period.
Both the MicroMaxx unit and P17 probe function as per manufacturer specifications and the condition is exactly as shown in images.

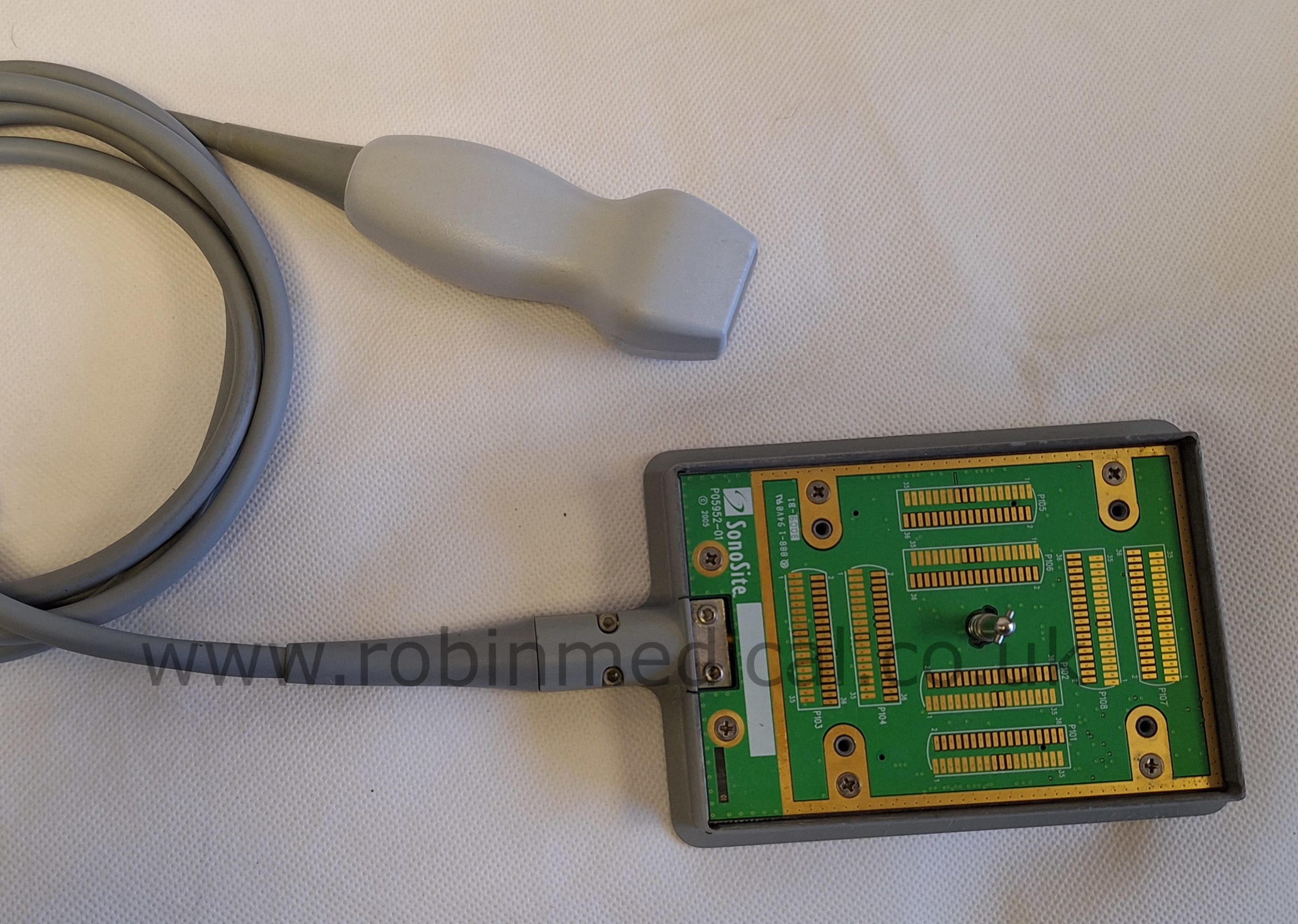

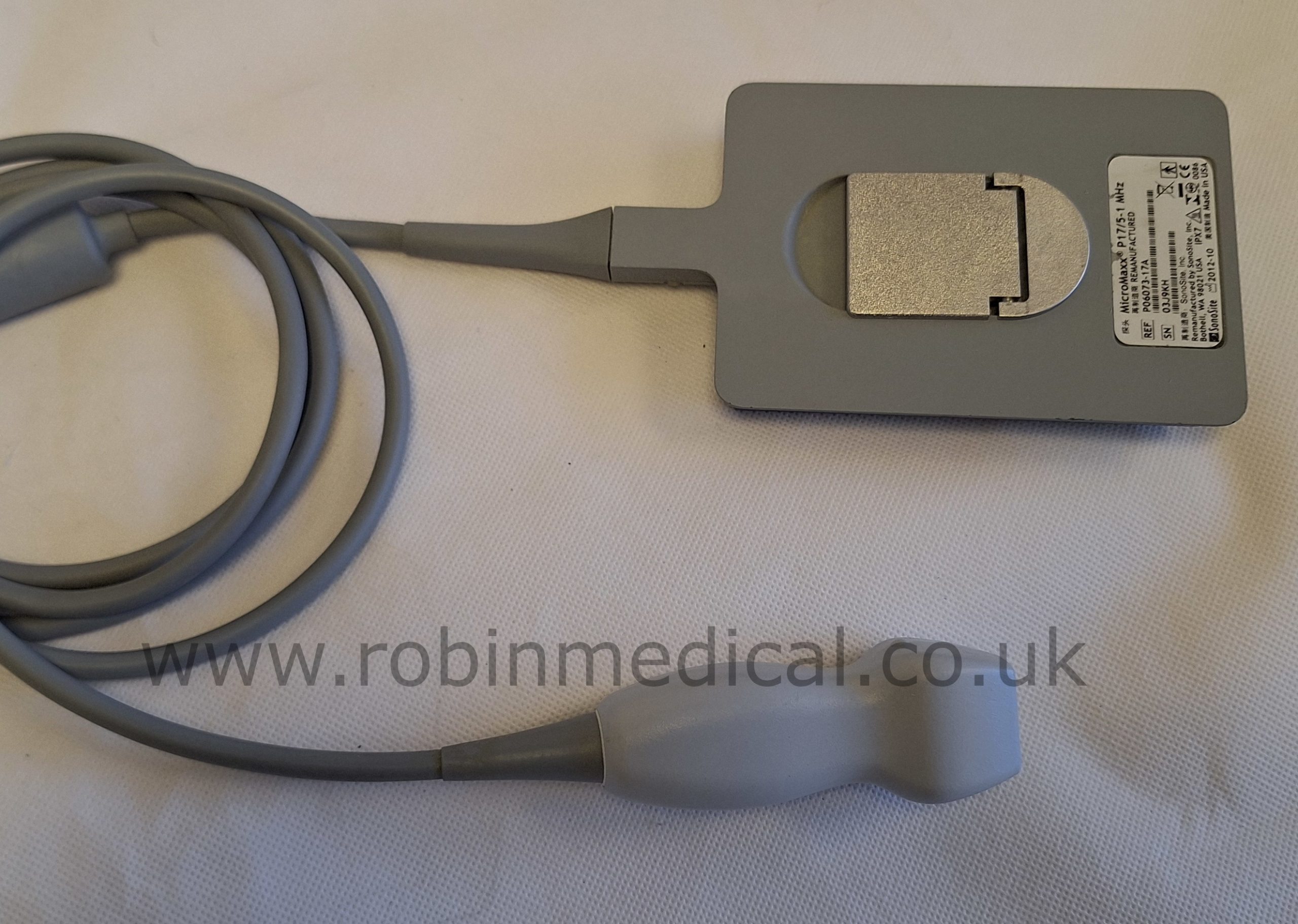

MicroMaxx P17 5-1 MHz P06073-17A Transducer Probe
The Sonosite MicroMaxx P17 P06073-17A is a precision-engineered phased array cardiac transducer, designed for use with the Sonosite MicroMaxx ultrasound system. Featuring a broadband frequency range of 5–1 MHz and a 17 mm footprint, this probe provides deep penetration and detailed imaging, ideal for adult cardiac and transcranial applications. Its compact, lightweight design supports ease of use in demanding clinical environments including emergency care, cardiology, and critical care units.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | P06073-17A |
| Type | Phased Array |
| Application | Cardiac, Transcranial Doppler |
| Common Applications | Adult Cardiac Imaging, Emergency Cardiac Assessment, TCD |
| Compatible System | Sonosite MicroMaxx |
| Frequency Range | 5–1 MHz |
| Footprint | 17 mm broadband phased array |
| Scan Depth | Up to 35 cm |
| Cable Length | 1.2 m |
| Connector Type | Proprietary Sonosite MicroMaxx connector |
| Weight | Approx. 300 g |
| Dimensions | Approx. 16 cm x 4 cm x 3 cm |
| Sterilization | Surface wipe disinfectable; non-autoclavable |
| Housing | Sealed, impact-resistant medical-grade plastic |
Key Features
-
17 mm broadband phased array for optimal cardiac image clarity
-
Designed for deep tissue imaging up to 35 cm
-
Ergonomically balanced for improved maneuverability
-
Reliable compatibility with Sonosite MicroMaxx ultrasound system
-
Strong build quality ideal for high-demand clinical environments
-
Lightweight and durable with integrated strain relief cable design
The probe functions as per manufacturer specifications and the condition is exactly as shown in images.
Immediately available for dispatch, patient ready and this product is offered with a 3 month warranty period.
