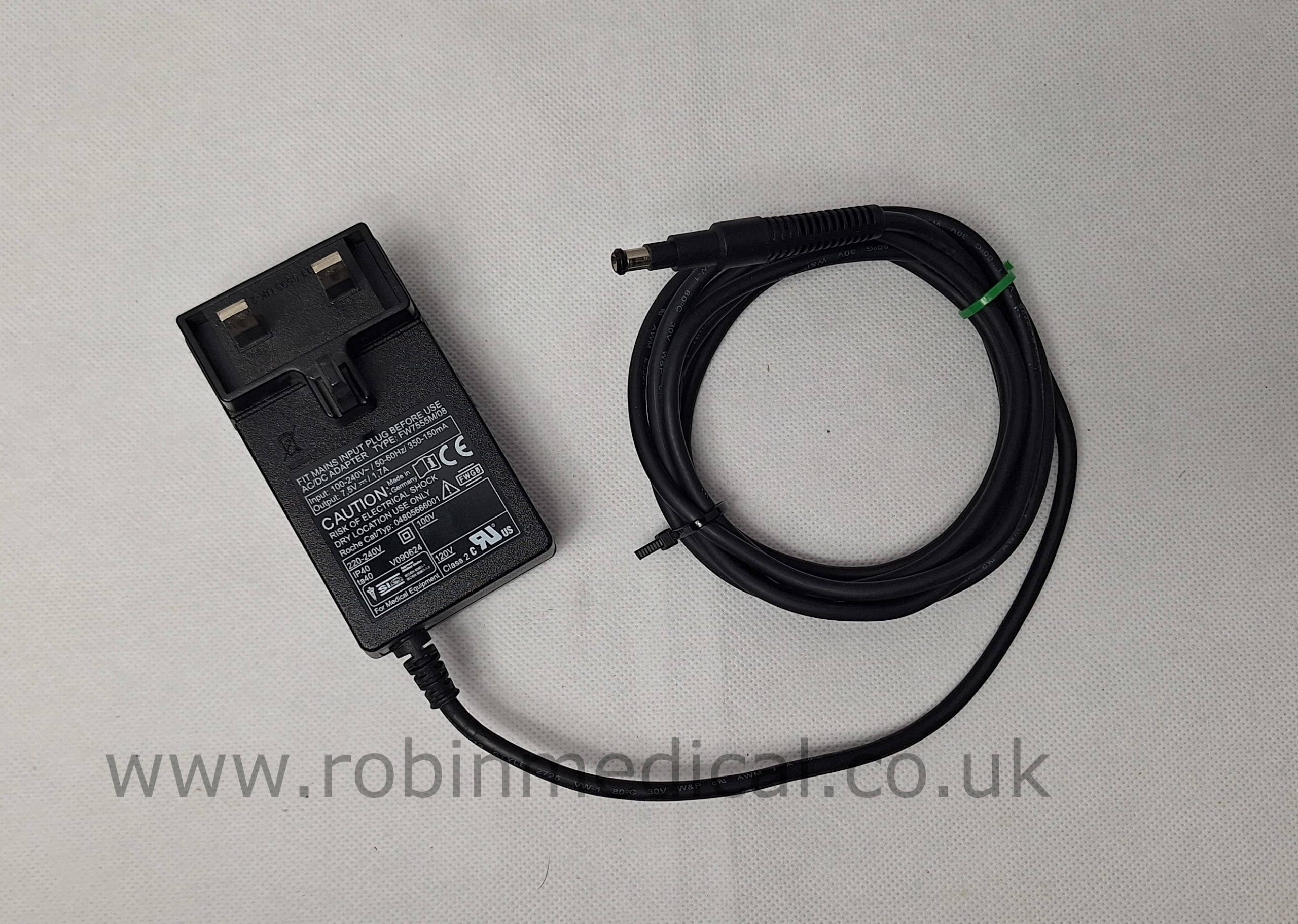

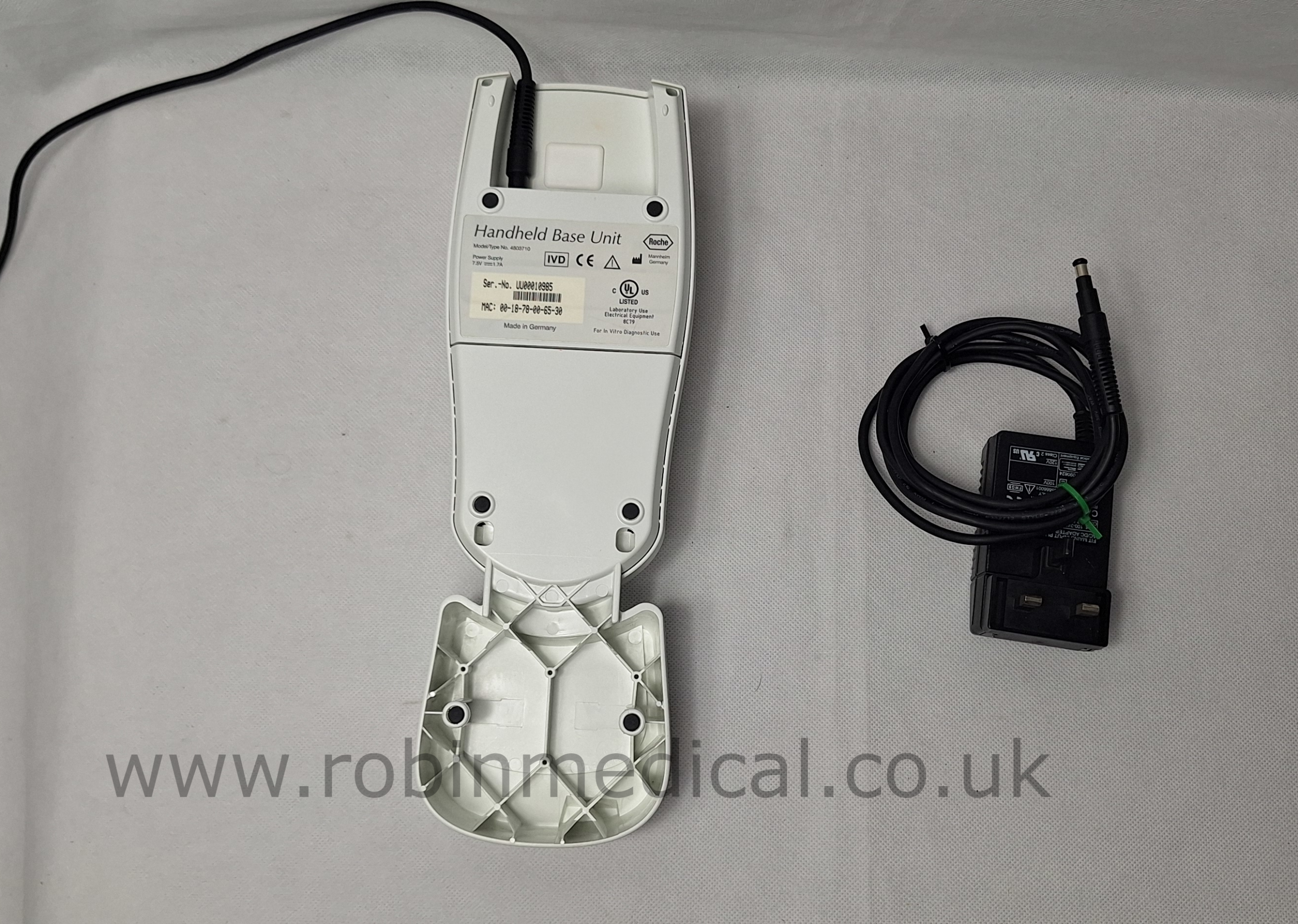

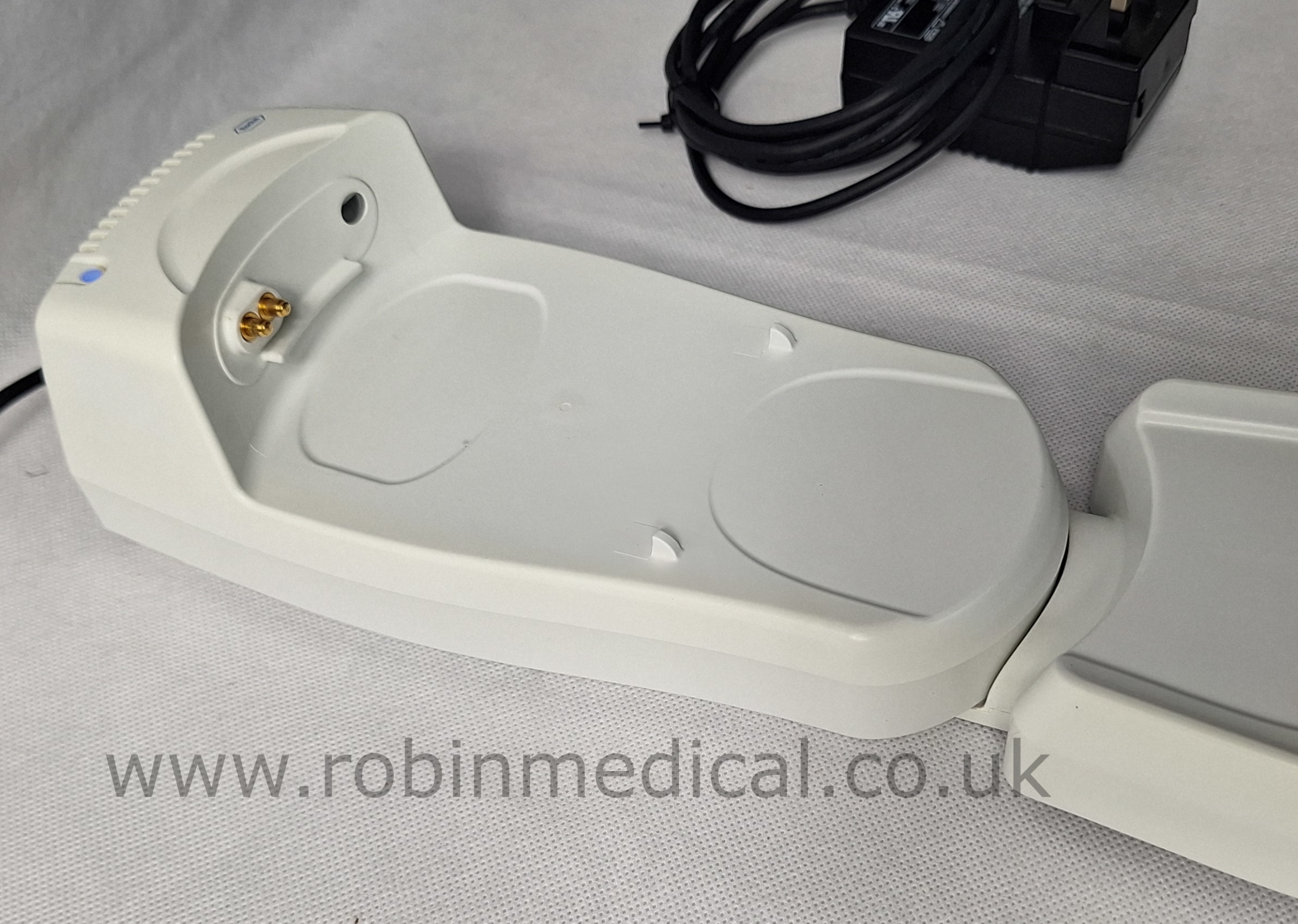

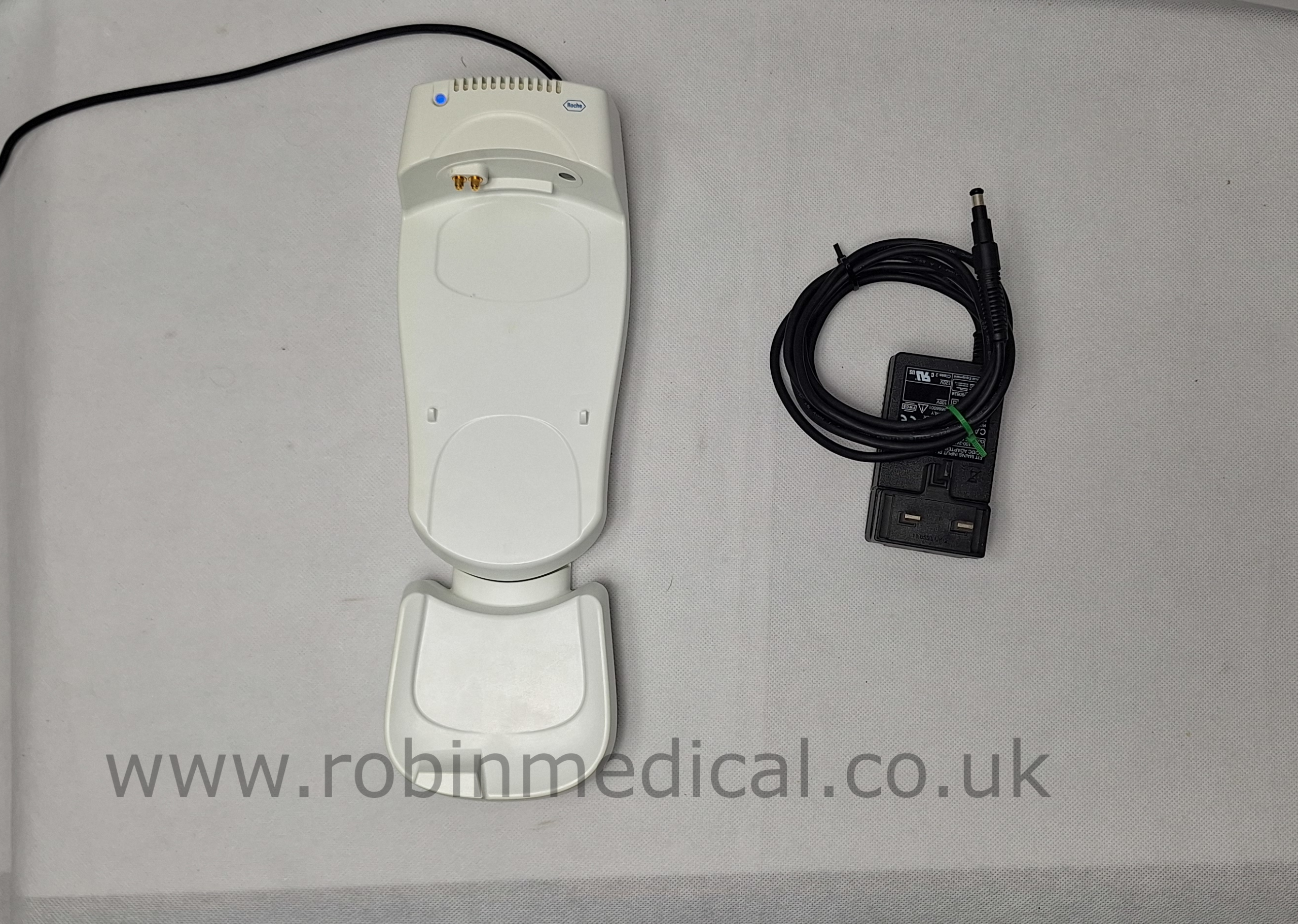

The Roche cobas h 232 Handheld Base Unit (also referred to as a Docking Station) is an optional accessory that enhances the functionality of the portable meter, particularly concerning charging, connectivity, and data management. It also Power Supply Unit is the external AC adapter used to power the meter directly or to power the Base Station, which then charges the meter.
| Parameter / Feature | Specification |
| Base Station Function (Primary) | Charging Hub for the cobas h 232 meter’s rechargeable battery pack. |
| Base Station Function (Secondary) | Data Transfer Hub for the meter to connect to a Data Management System (DMS) or printer. |
| Base Station Connectivity | USB and Ethernet Ports (wired data transfer). |
| Power Supply Function | Powers the Base Station or the meter directly; facilitates charging of the meter’s internal battery. |
| Power Supply Input | 100 – 240 text V AC 50/60 Hz, 400 mA (Mains Connection). |
| Power Supply Output | 7.5 V DC, 1.7 A (to Meter/Base). |
