ResMed S9 Escape Fixed Pressure CPAP System REF-36141
Availability:
2 in stock
£600.00
2 in stock
The ResMed S9 Escape (REF 36141) is a fixed-pressure CPAP device intended for the treatment of obstructive sleep apnea (OSA). As the “Escape” model of the S9 series, it offers a simpler, quieter, and more cost-effective alternative while still incorporating core S9 technologies such as the Easy-Breathe motor and climate control features. It is optimized for users who do not require auto-adjusting pressure therapy but value comfort, reliability, and quiet operation.
Technical Specifications:
| Specification: | Detail: |
|---|---|
| Manufacturer | ResMed |

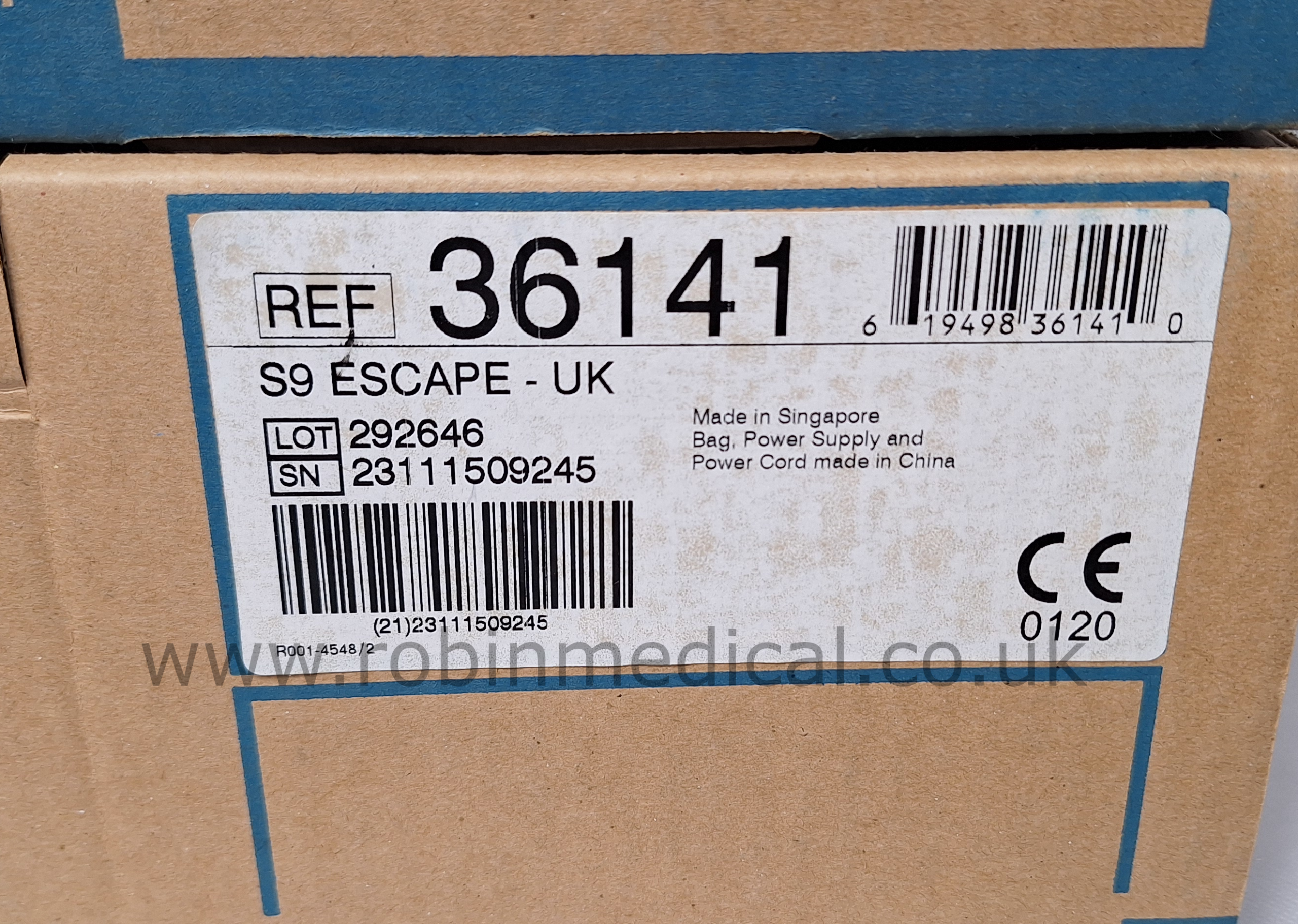

| Model / REF | S9 Escape, UK Product Code REF 36141 |
| Therapy Mode | Fixed CPAP (constant pressure) |
| Operating Pressure Range | 4 to 20 cm H₂O |
| Maximum Steady Pressure (single fault) | 30 cm H₂O |
| Pressure Tolerance | ±0.5 cm H₂O ± 4% of measured reading |
| Noise Emission | 24 dBA (tested per ISO 17510-1 / EN ISO 17510-1 ±2 dB) |
| Dimensions (L × W × H) | 153 mm × 140 mm × 86 mm |
| Weight | ~ 810 g |

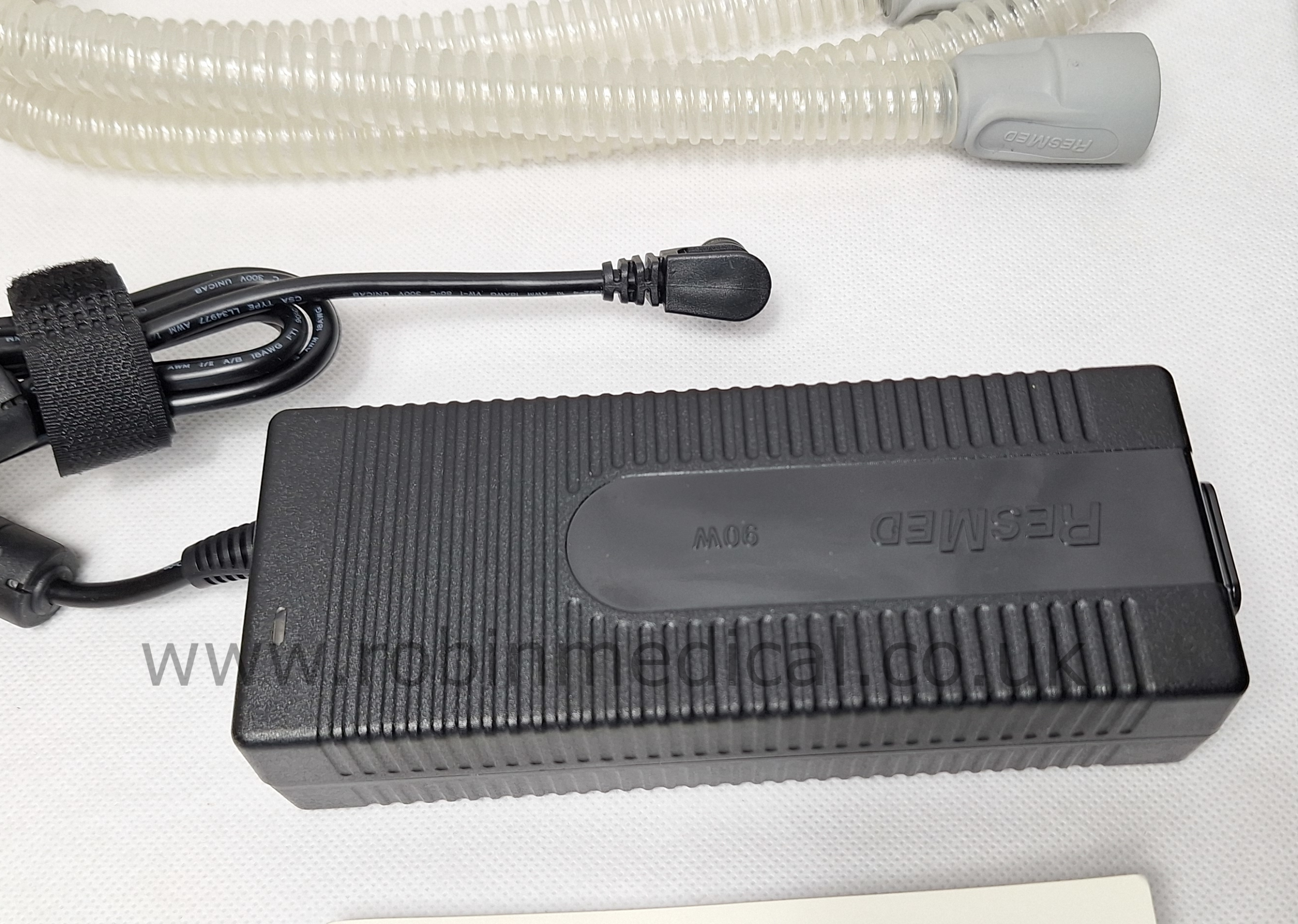

| Power Supply | 90 W AC adaptor (100–240 V, 50/60 Hz) |
| Typical / Maximum Power Usage | Typical ~70 W, Peak ~110 W |
| Operating Temperature | +5 °C to +35 °C |
| Storage / Transport Temperature | −20 °C to +60 °C |
| Operating Humidity | 10% to 95% RH (non-condensing) |
| Altitude | Up to 2,591 m |

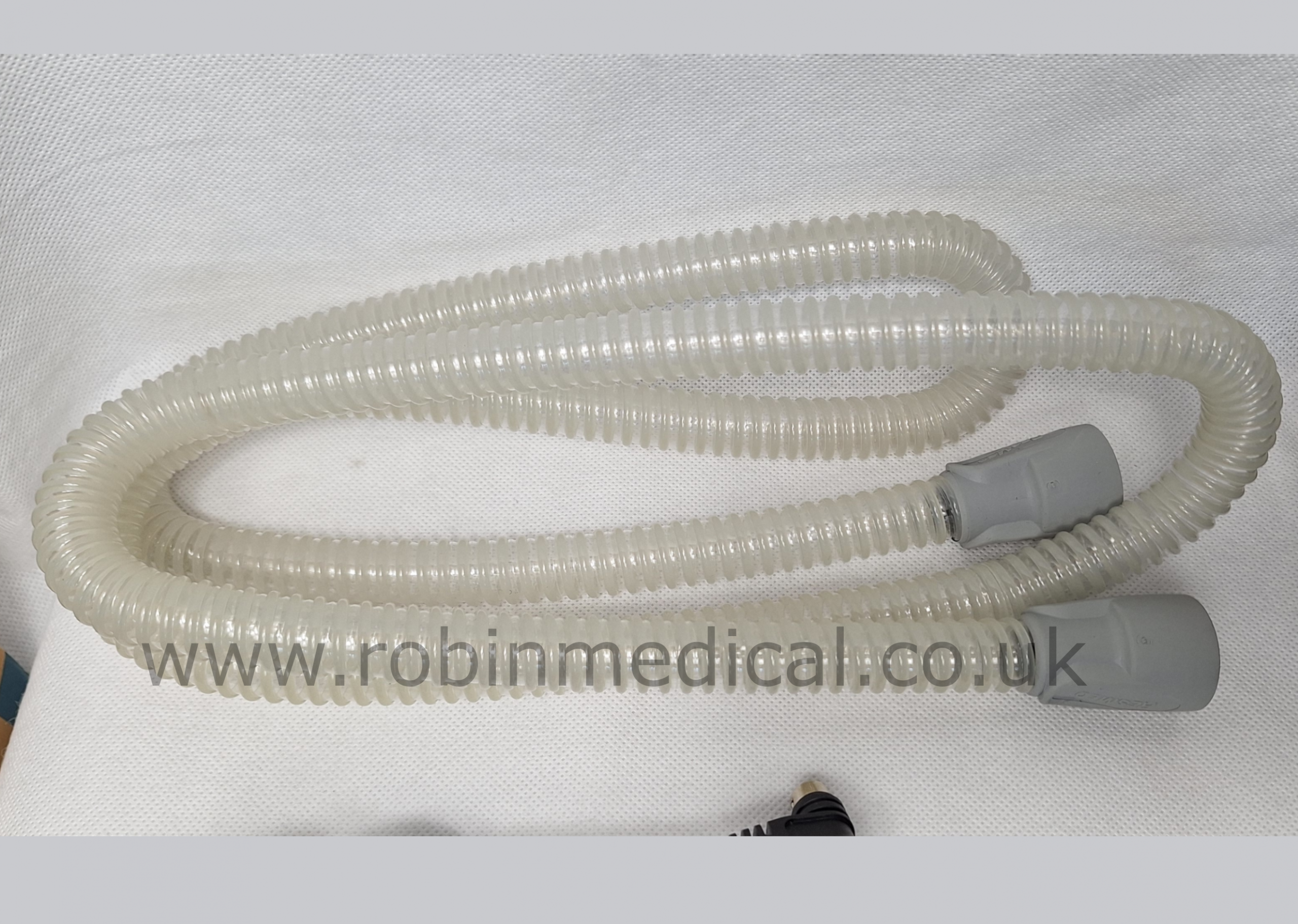

| Air Tubing Options | Standard SlimLine (1.8 m / 15 mm) or ClimateLine heated tubing (2 m / 15 mm) |
| Air Filter | Standard (polyester non-woven) or hypoallergenic (acrylic) |
| Data / Memory | Holds up to 365 therapy sessions; supports SD card export |
| Standards & Safety | Class II, Type BF; complies with IEC 60601-1, IEC 60601-1-2 |
2X Opened but unused units in stock.
Immediately available for dispatch, patient ready and this product is offered with a 3 month warranty period.
