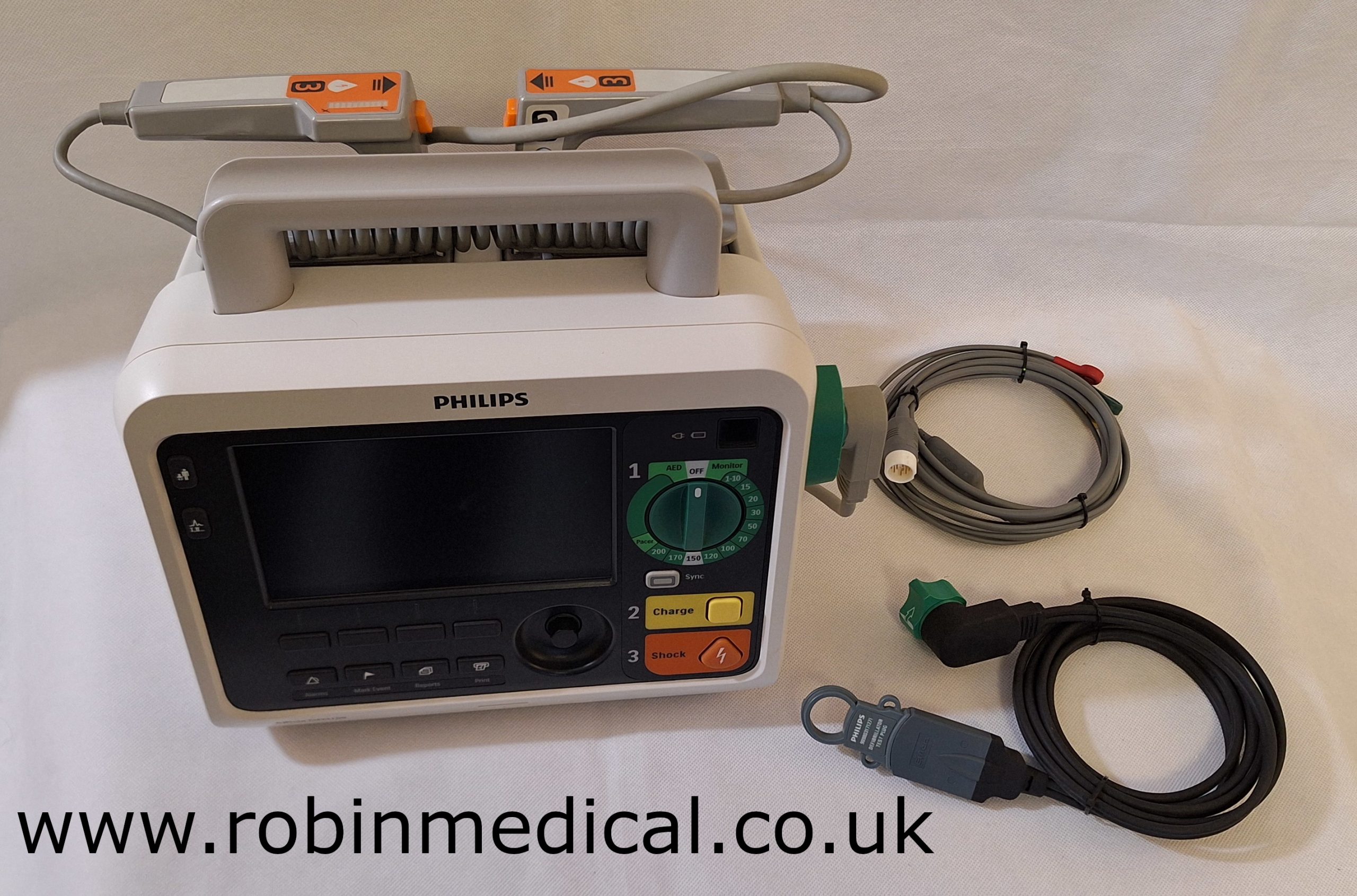

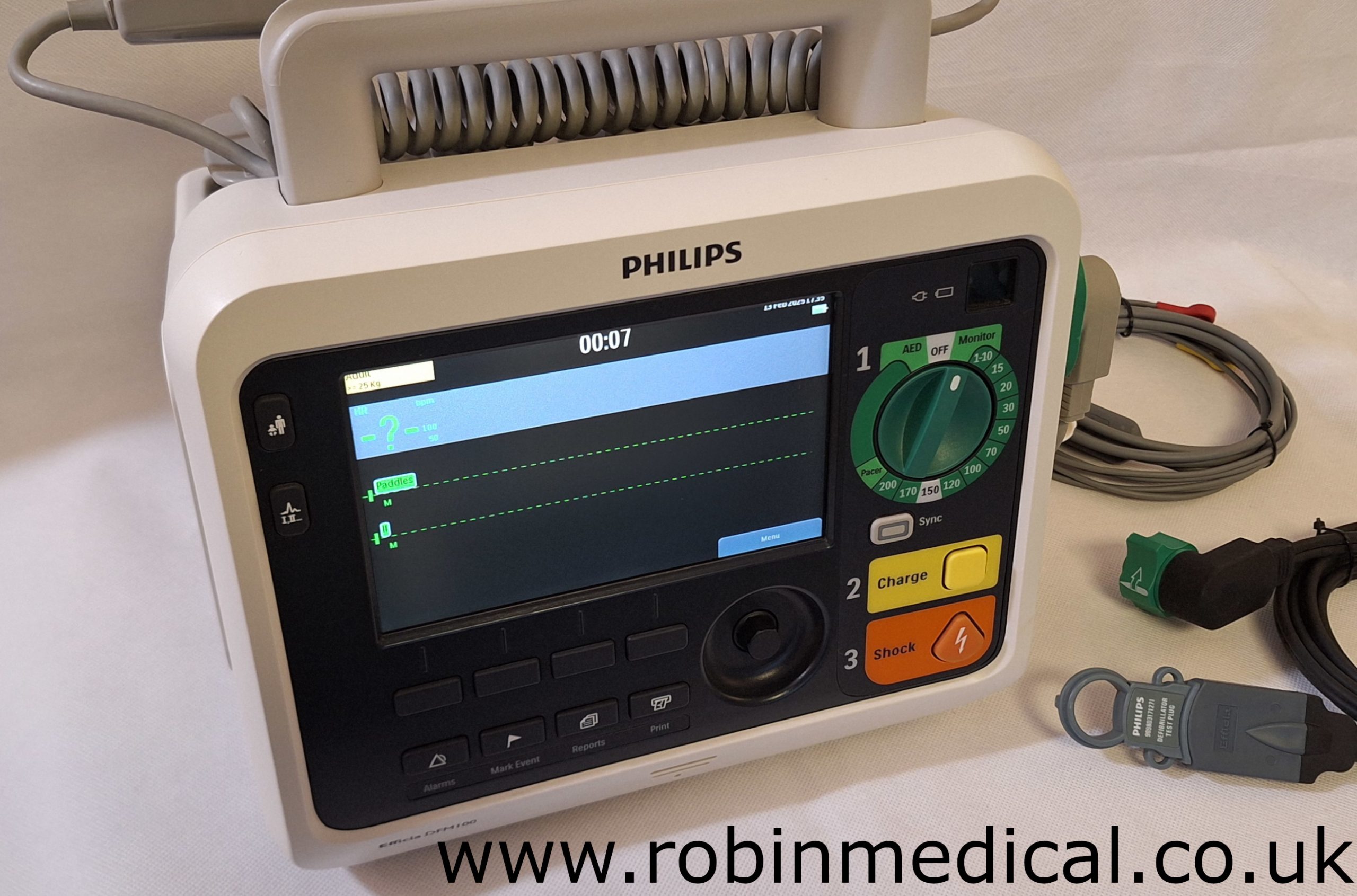

Philips Efficia DFM100 Defibrillator / Monitor with etCO₂ & Pacer, in very good physical and operational condition, unit’s actual photos displayed.
- Offered Patient ready with a 3 months warranty
- Model: DFM100 Defibrillator with Pacer, main-stream etCO₂, ECG, printer Options
- P/N: 866199
- YOM: 07/ 2018
- Opt: A05B01B02C09C10WA2X00
- OPT Key: CBD987FFB

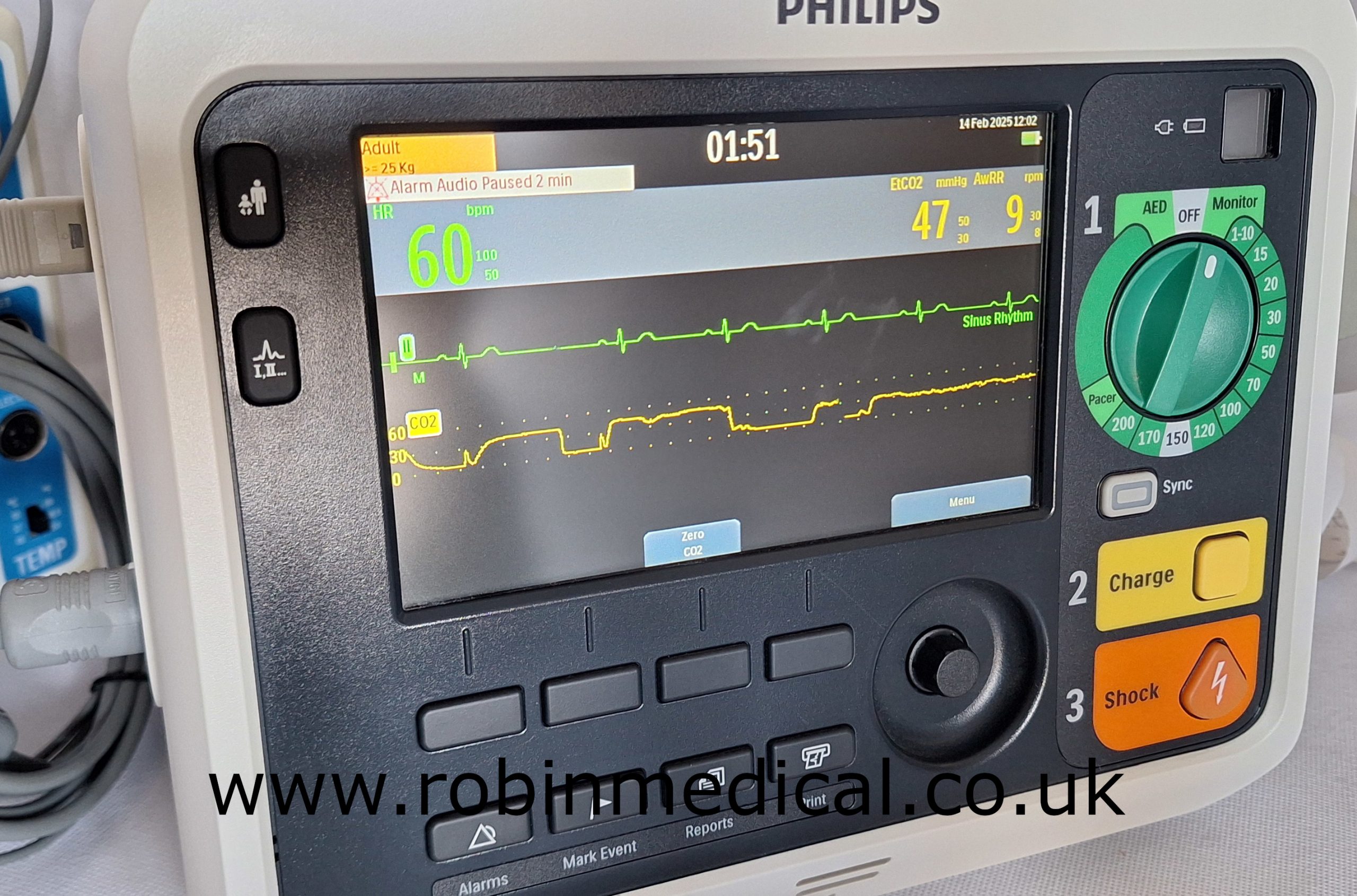

- Capacitive touch screen and fixed keys for easy operation
- Maximum 5 hours operation time
- Weighs 5.66KG

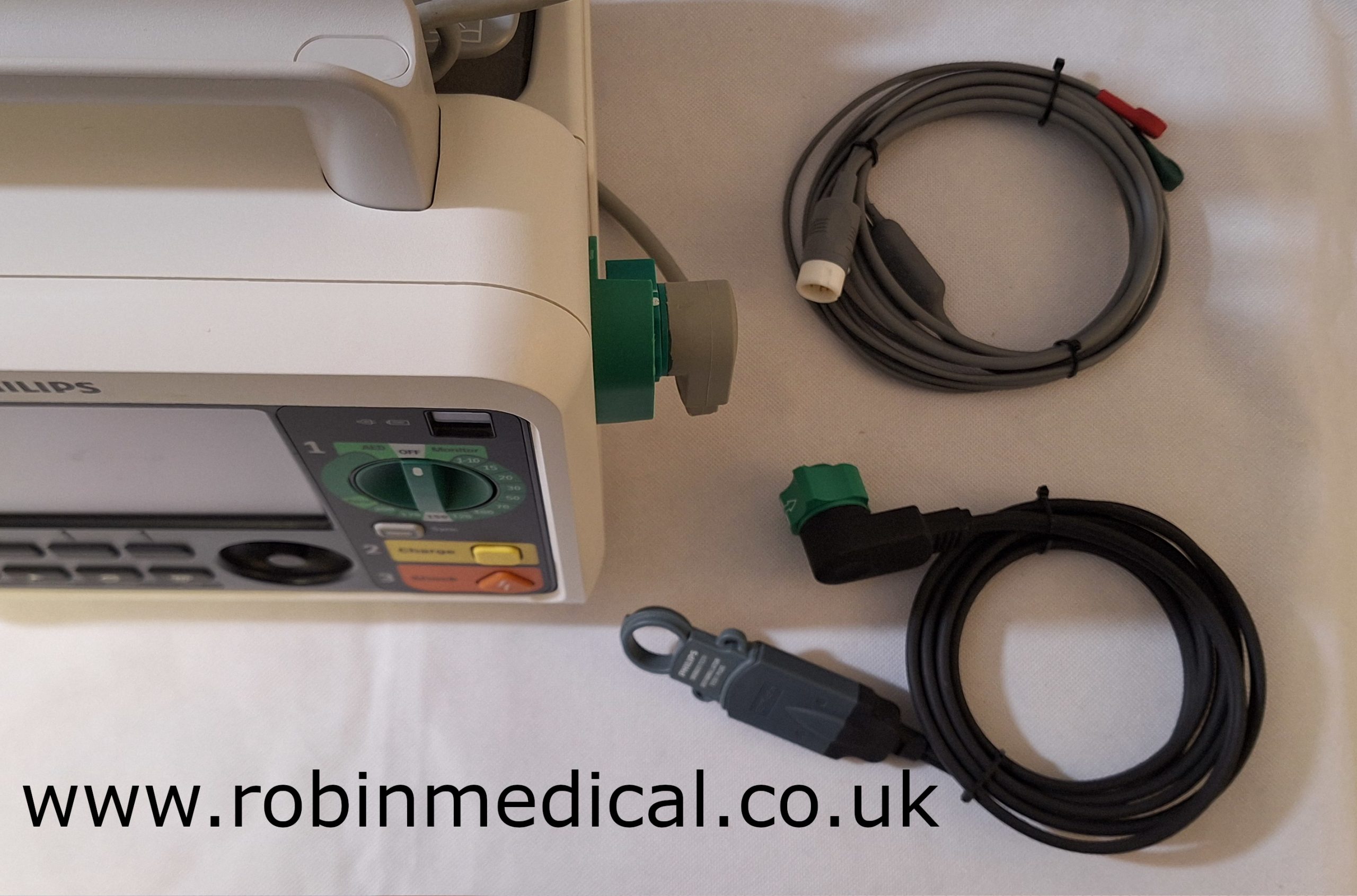

- Supplied with:
- 3 Lead ECG
- Pacer/Disposable pads cable
- Good used Battery fitted
- A used Heard Paddle Adult/Paediatric REF: (M3542A) 989803196431, can be added at extra £300
- A New Heard Paddle Adult/Paediatric REF: (M3542A) 989803196431, can be added at extra £590
- A NEW CO2 Sensor (Philips Capnostat M2501A) can be added at extra £800
- Immediately available for dispatch.
This Philips Efficia DFM100 is a compact and versatile defibrillator/monitor designed for efficient patient care in emergency and critical settings. It integrates essential monitoring capabilities, including ECG, end-tidal carbon dioxide (EtCO₂), and pacing functions, into a single portable device.
Key Features:
-
Comprehensive Monitoring: Equipped with ECG, EtCO₂, and pacing functionalities to support diverse clinical needs.
-
Efficient Defibrillation: Utilizes a biphasic truncated exponential waveform with adjustable parameters based on patient impedance, ensuring effective shock delivery.
-
Rapid Charge and Ready Times: Achieves recommended energy levels swiftly, with less than 5 seconds to 150 Joules and less than 6 seconds to higher energy levels, minimizing downtime between shocks.
-
Portable Design: Weighing approximately 5.66 kg (12.5 lbs) without the battery and featuring dimensions of 23.5 cm (H) x 29 cm (W) x 20.5 cm (D), the device is designed for easy transport and bedside use.
Specifications:
| Specification | Details |
|---|---|
| Display | 7-inch (17.8 cm) color TFT LCD with 800 x 480 pixels (VGA) resolution and 32 brightness levels per color. |
| Wave Viewing Time | 6.5 seconds ±10%. |
| Sweep Speed | 25 mm/s ±10% for ECG ; 6.25 mm/s ±10% for capnogram. |
| Defibrillator Waveform | Biphasic Truncated Exponential; parameters adjusted based on patient impedance. |
| Shock Delivery | Via multifunction electrode pads or paddles. |
| Charge Time | <5 seconds to 150 Joules; <6 seconds to selected energy levels up to 200 Joules with a fully charged battery. |
| AED Mode | Ready to deliver shock in <24 seconds, even after 15 discharges at maximum energy. |
| Patient Impedance Range | 25 ohms (external defibrillation) to 250 ohms; functional range may exceed these values. |
| Power Source | Rechargeable Lithium Ion battery; AC power with protective grounding. |
| Dimensions (H x W x D) | 23.5 cm x 29 cm x 20.5 cm (9.25 in x 11.4 in x 8 in). |
| Weight (without battery) | 5.66 kg (12.5 lbs). |
| Operator Position | Within one meter (3 feet) of the device. |
The Philips Efficia DFM100 combines essential monitoring and defibrillation features in a portable design, enhancing patient care in critical situations.
