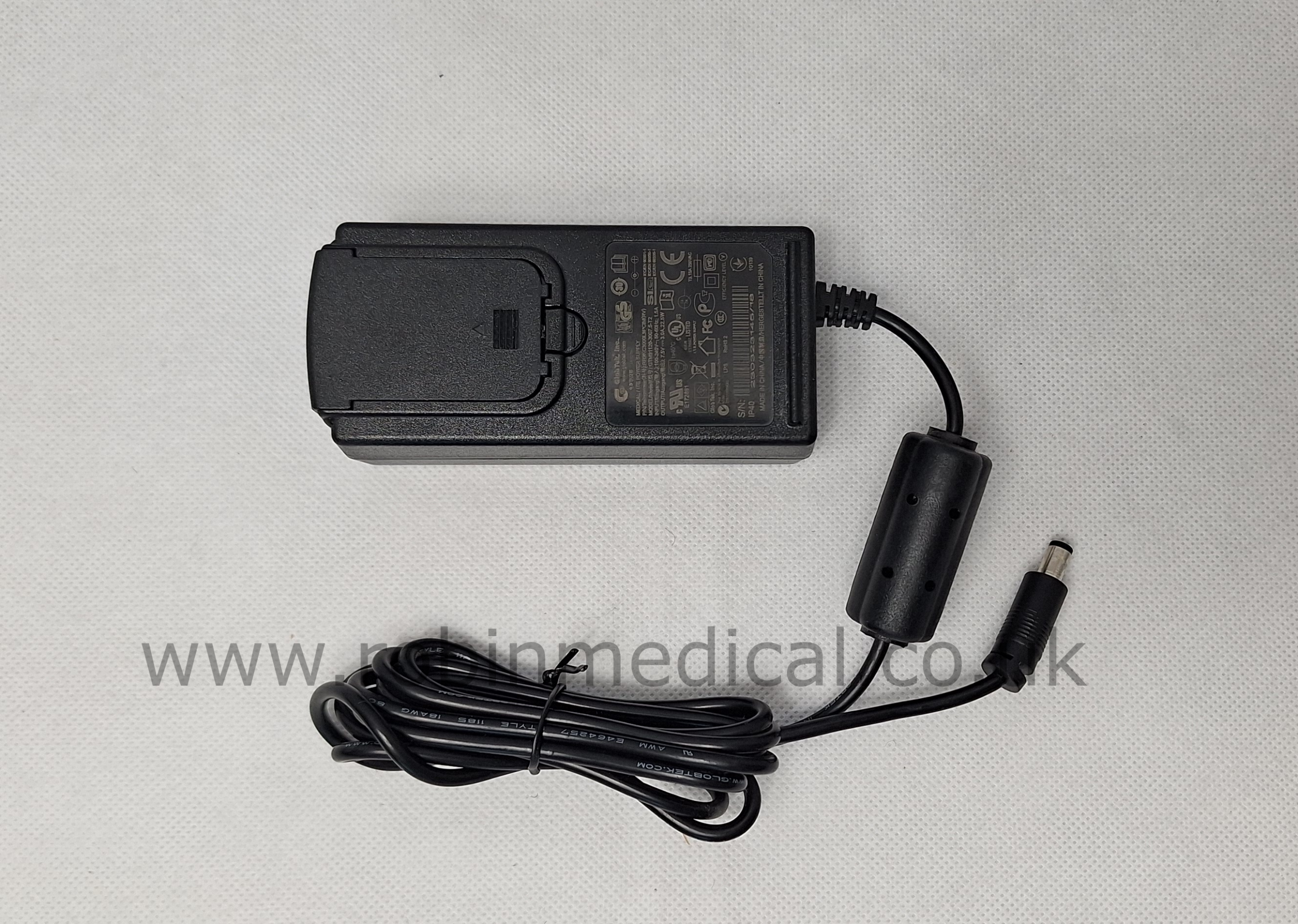

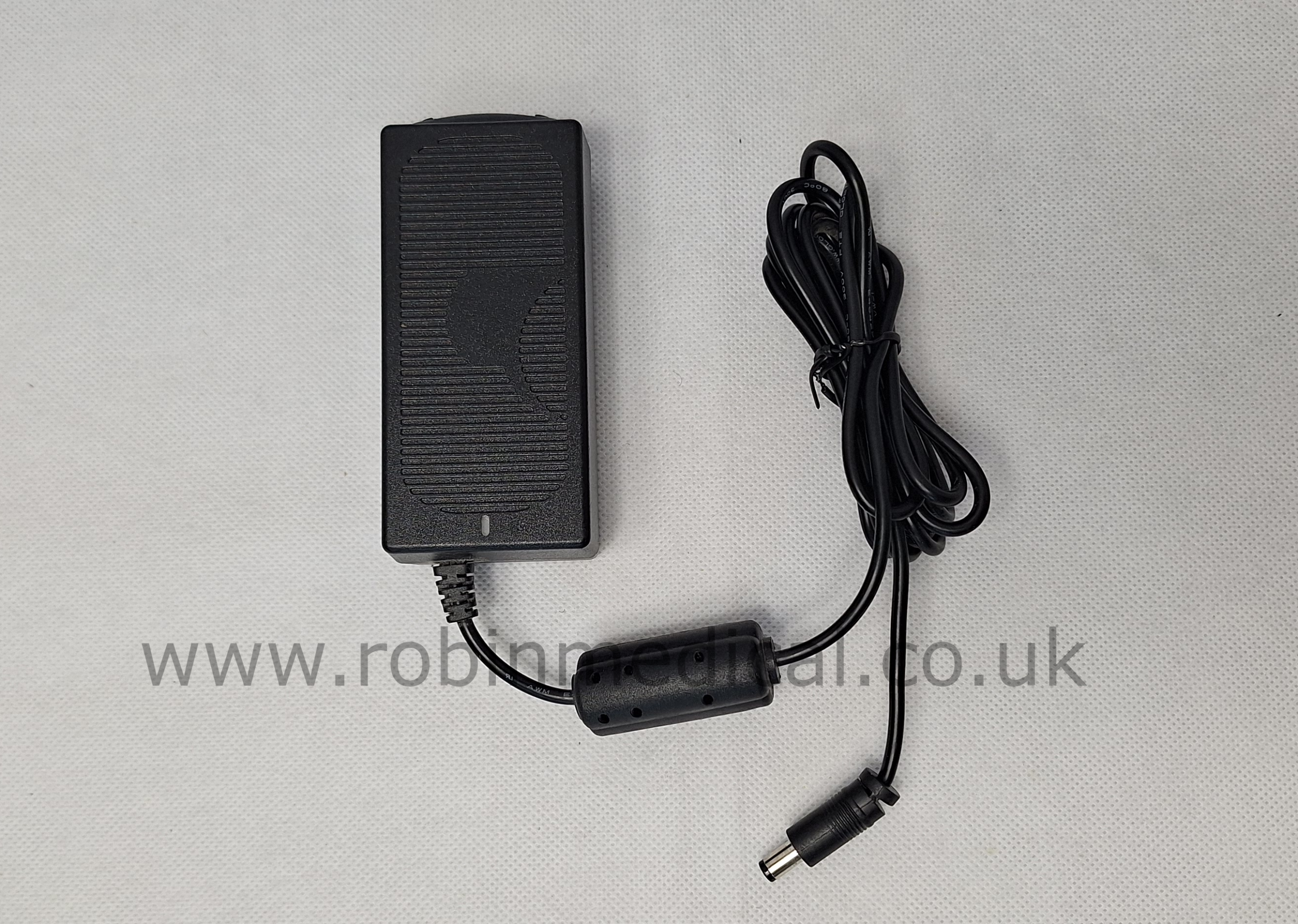

The GlobTek GTM91120-30VV-T2 is a model of a high-efficiency switching AC-DC power supply, often designed for medical and ITE (Information Technology Equipment) applications.
The GlobTek GTM91120-30VV-T2 is a model of a high-efficiency switching AC-DC power supply, often designed for medical and ITE (Information Technology Equipment) applications.
Feature | Specification |
Model | GTM91120-30VV-T2 |
Type | Regulated Switchmode AC-DC Power Supply (Wall Plug-in / Desktop combination) |
Output Voltage | 7.5 V |
Output Current (Max) | 3.0 A |
Output Power (Max) | 22.5 W |
Input Voltage Range | 100 – 240 VAC (Universal Input) |
Input Frequency | 50 – 60 Hz |
Efficiency Level | Level VI (Meets current energy efficiency standards) |
Medical Safety Approvals | IEC/EN 60601-1 (3rd Edition, 2xMOOP/Means of Operator Protection) |
ITE/Commercial Safety | IEC/EN 60950-1, IEC/EN 62368-1 |
Cooling | Convection |
Dimensions (Approx.) | 101.73 mm×46.47 mm×38.2 mm (L x W x H) |
1X Used unit in stock.
Immediately available for dispatch, patient ready and this product is offered with a 3 month warranty period.
