GE E-sCAiOV Respiratory Gas Module
Availability:
3 in stock
£2,690.00
3 in stock

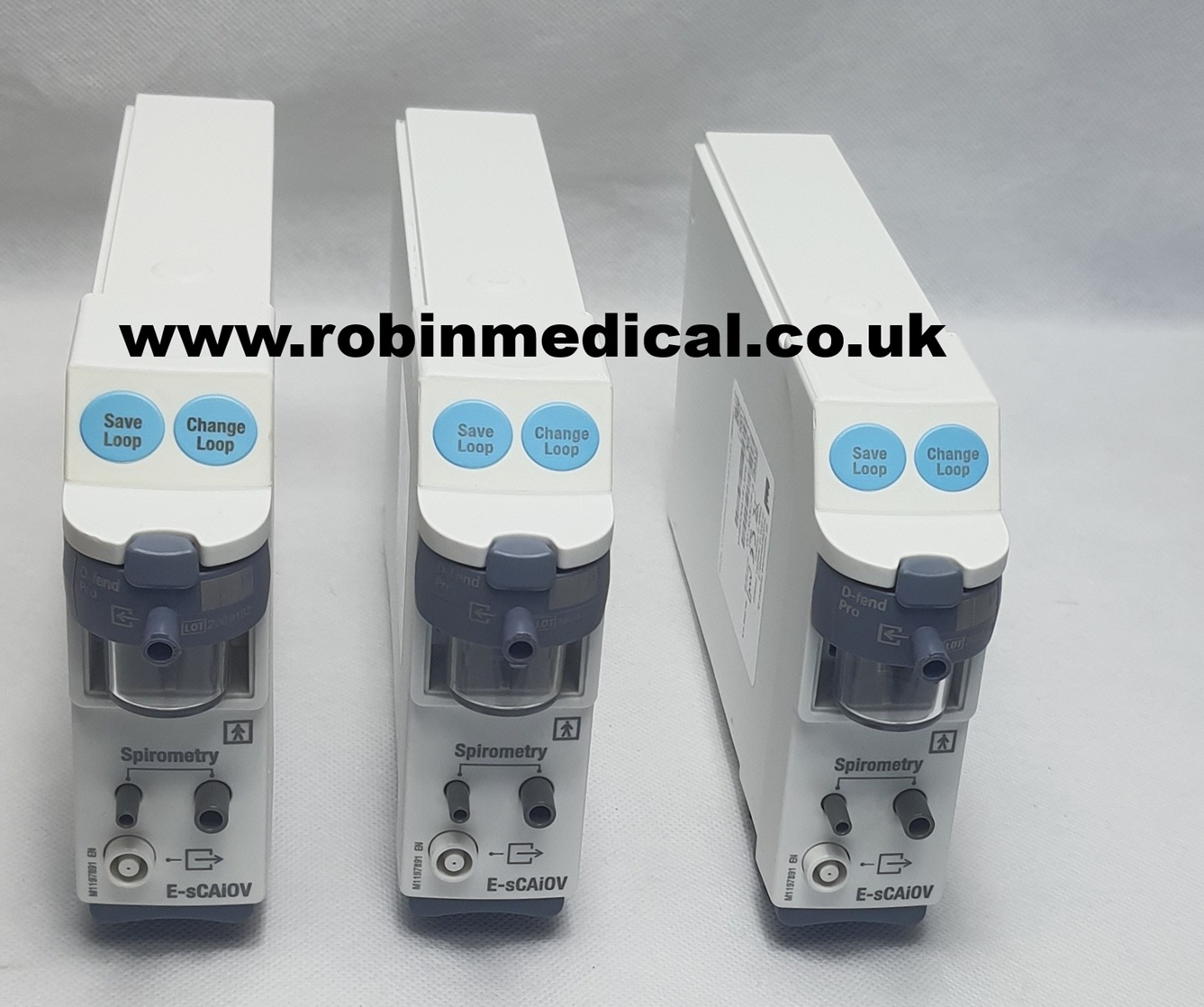

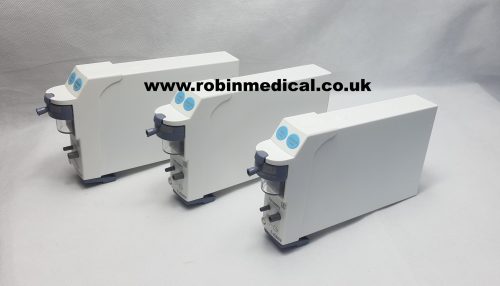

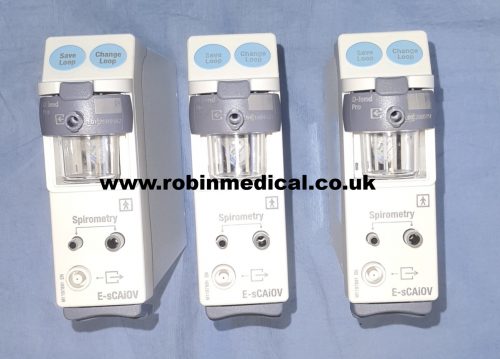

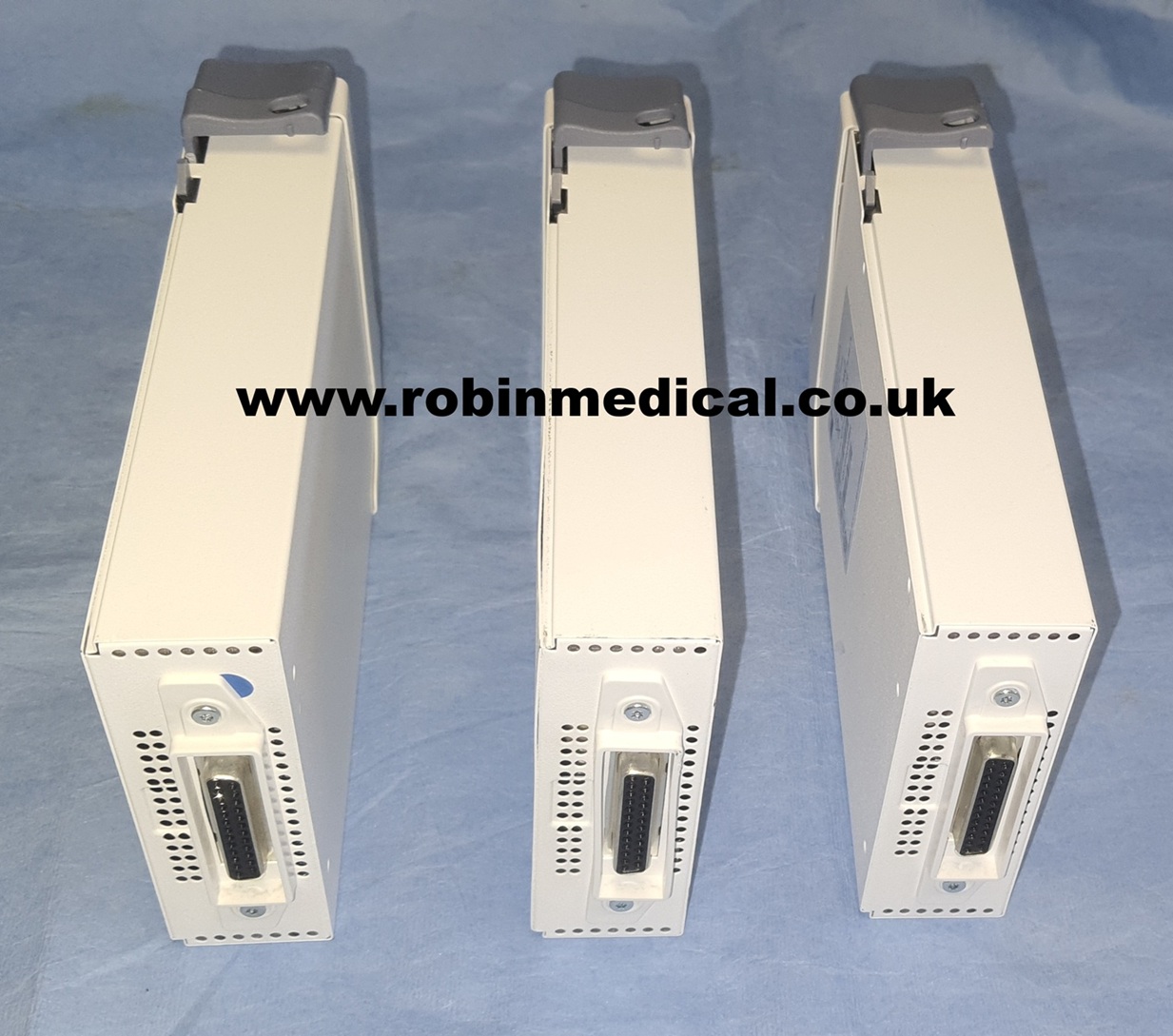

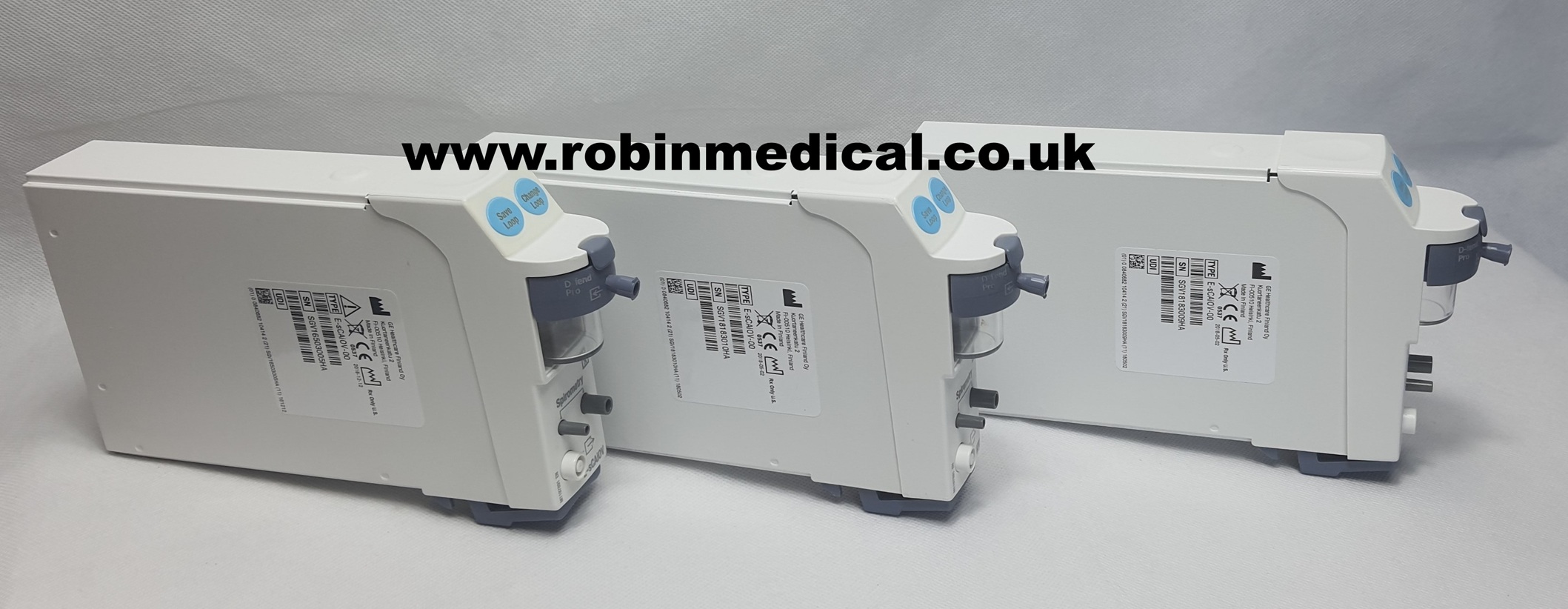

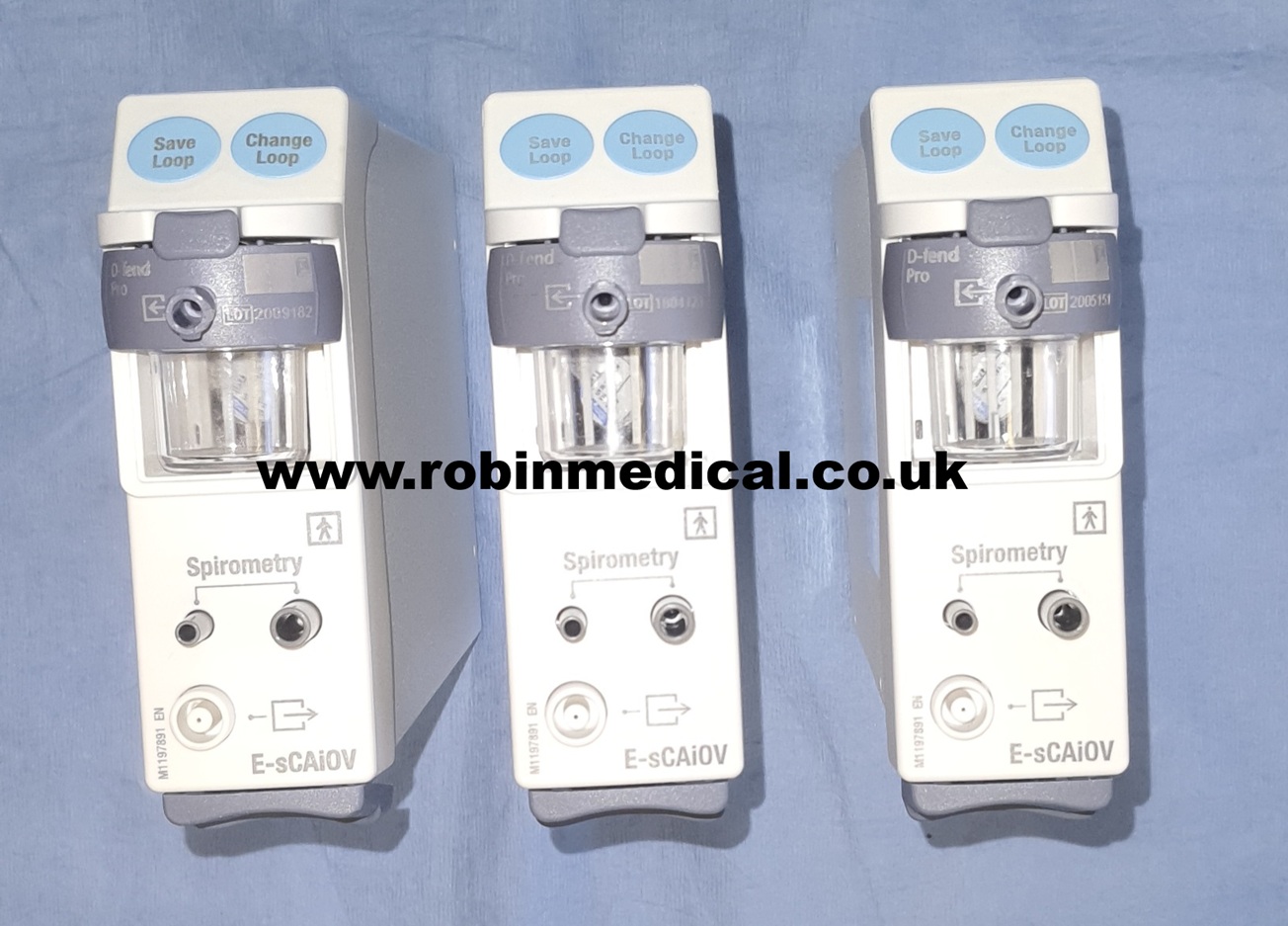

GE E-sCAiOV compact respiratory anaesthesia Gas module, in very good physical and operational condition, module’s actual photos displayed.
- Type: E-sCAiOV-00
- Patient Ready, Calibrated and offered with 3 months warranty.
- YOM: 2018 and 2016 units
- Single-width module that can monitor side-stream etCO2 & N2O, Anaesthetic Agents & Agent Identification, Oxygen and hemodynamic measurements module of adult, paediatric and neonatal patients.
- Price indicated is for each module.
The GE CARESCAPE E-sCAiOV Respiratory Gas Module is a compact, single-width side-stream gas module that provides continuous, breath-by-breath monitoring of airway gases (including CO₂ and O₂), nitrous oxide and multiple volatile anaesthetic agents, with automatic agent identification and optional patient spirometry/gas-exchange measurements. It’s designed as a plug-in module for GE CARESCAPE (and compatible host monitors) and is intended for anaesthesia, peri-operative and critical care use.
Technical Specifications
| Parameter | Specification |
|---|---|
| Measured Gases | O₂, CO₂, N₂O, Halothane, Isoflurane, Enflurane, Sevoflurane, Desflurane |
| O₂ Measurement | Paramagnetic sensor, 0–100% vol, accuracy ±(1% vol + 2% of reading) |
| CO₂ Measurement | Infrared, 0–15% vol, accuracy ±(0.2% vol + 2% of reading) |
| N₂O Measurement | Infrared, 0–100% vol, accuracy ±(2% of reading) |
| Anesthetic Agents (AA) | Halothane: 0-6 vol%, Enflurane: 0-6 vol%, Isoflurane: 0-6 vol%, Sevoflurane: 0-8 vol%, Desflurane: 0-20 vol%. |
| Respiratory Rate Range | 4–100 breaths per minute |
| Gas Sampling Method | Sidestream |
| Sampling Flow Rate | 120–200 mL/min (nominal 200 mL/min) |
| Warm-up Time | < 1 minute to full specifications |
| Integration | Compatible with GE CARESCAPE and S/5 monitoring platforms |
| Dimensions | Approx. 112 x 37 x 205 mm (4.4 x 1.5 x 8.1 in) |
| Weight | 0.7 kg (1.5 lb) |
| Power Supply | Provided by the host CARESCAPE monitor |
| Operating Temperature | 10 to 40°C (50 to 104°F) |
| Storage Temperature | -25 to 60°C (-13 to 140°F) |
| Humidity (Operating) | 15% to 95% relative humidity, non-condensing |
