Philips L17-5 High-Frequency Broadband Linear Array Ultrasound Probe (5–17 MHz) for iU22 HD15 HD11 XE
Availability:
1 in stock
£890.00
1 in stock

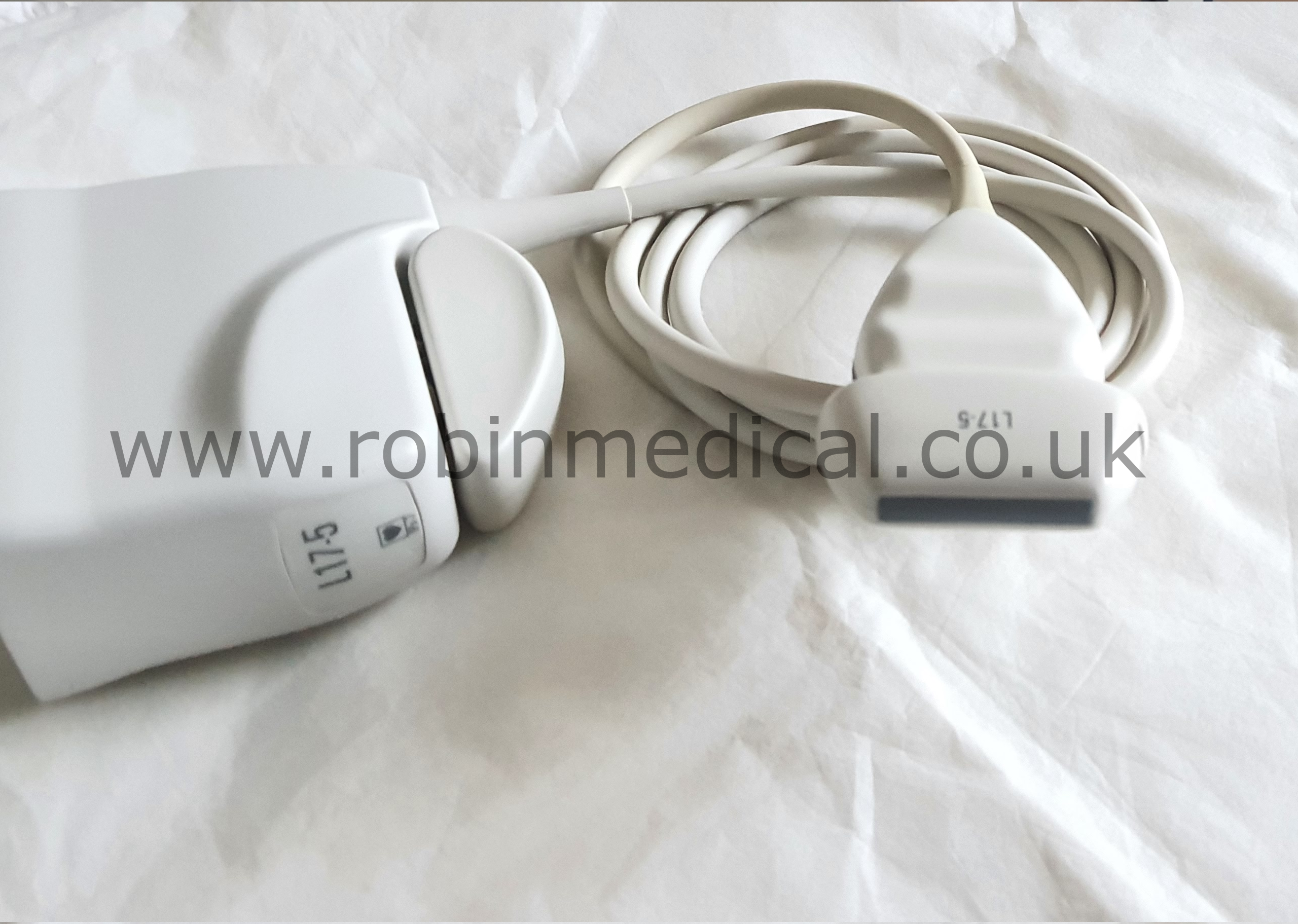

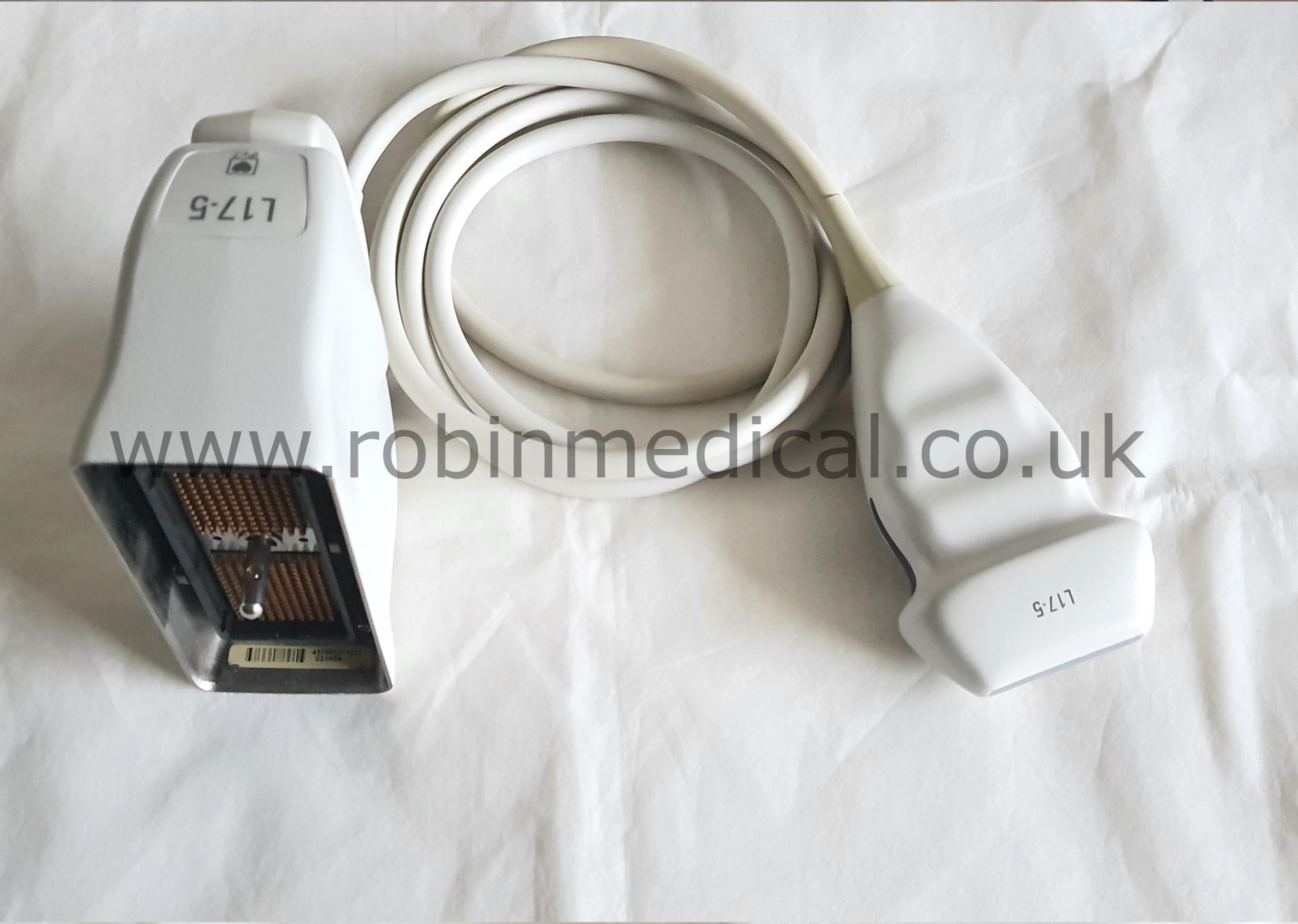

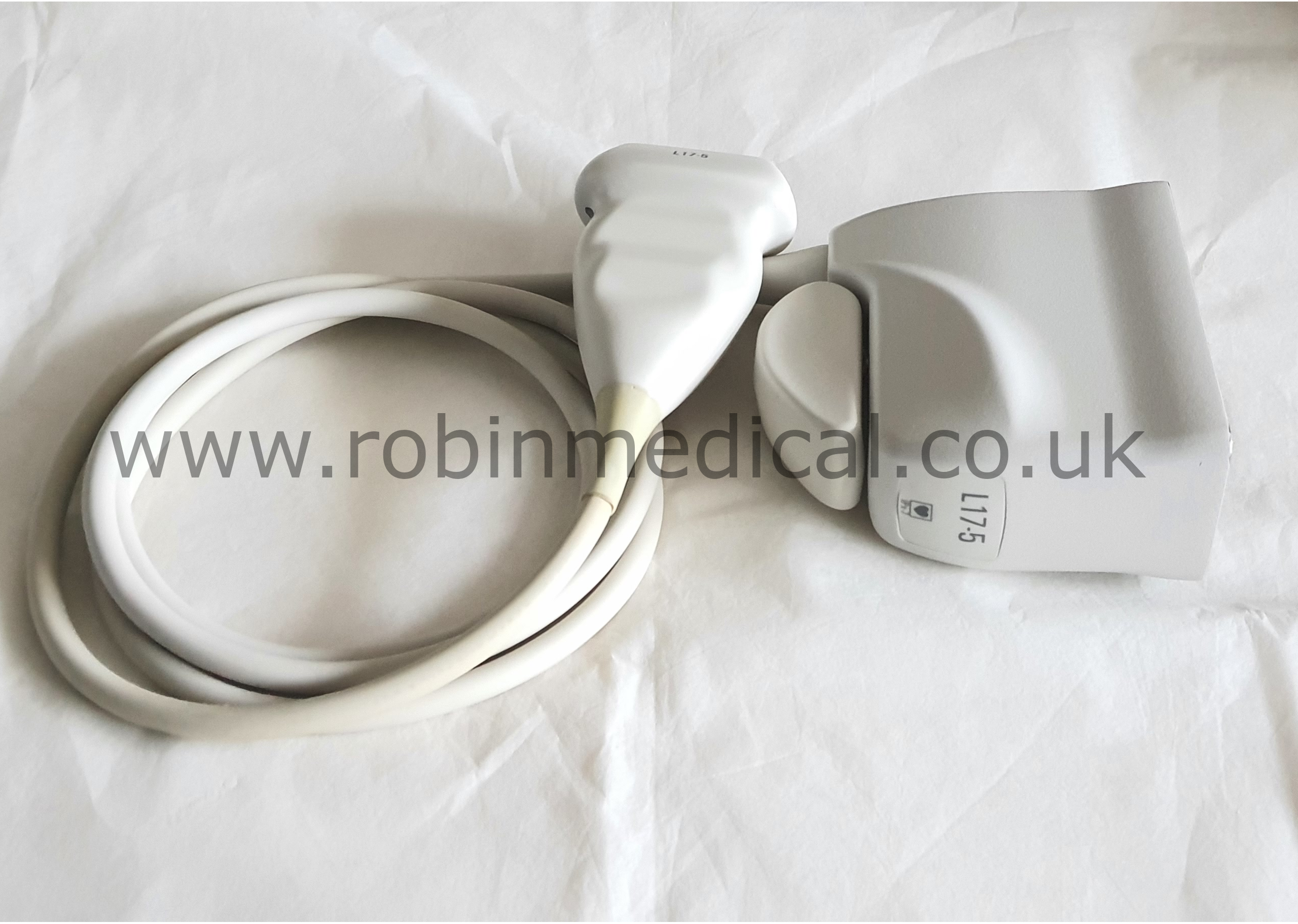

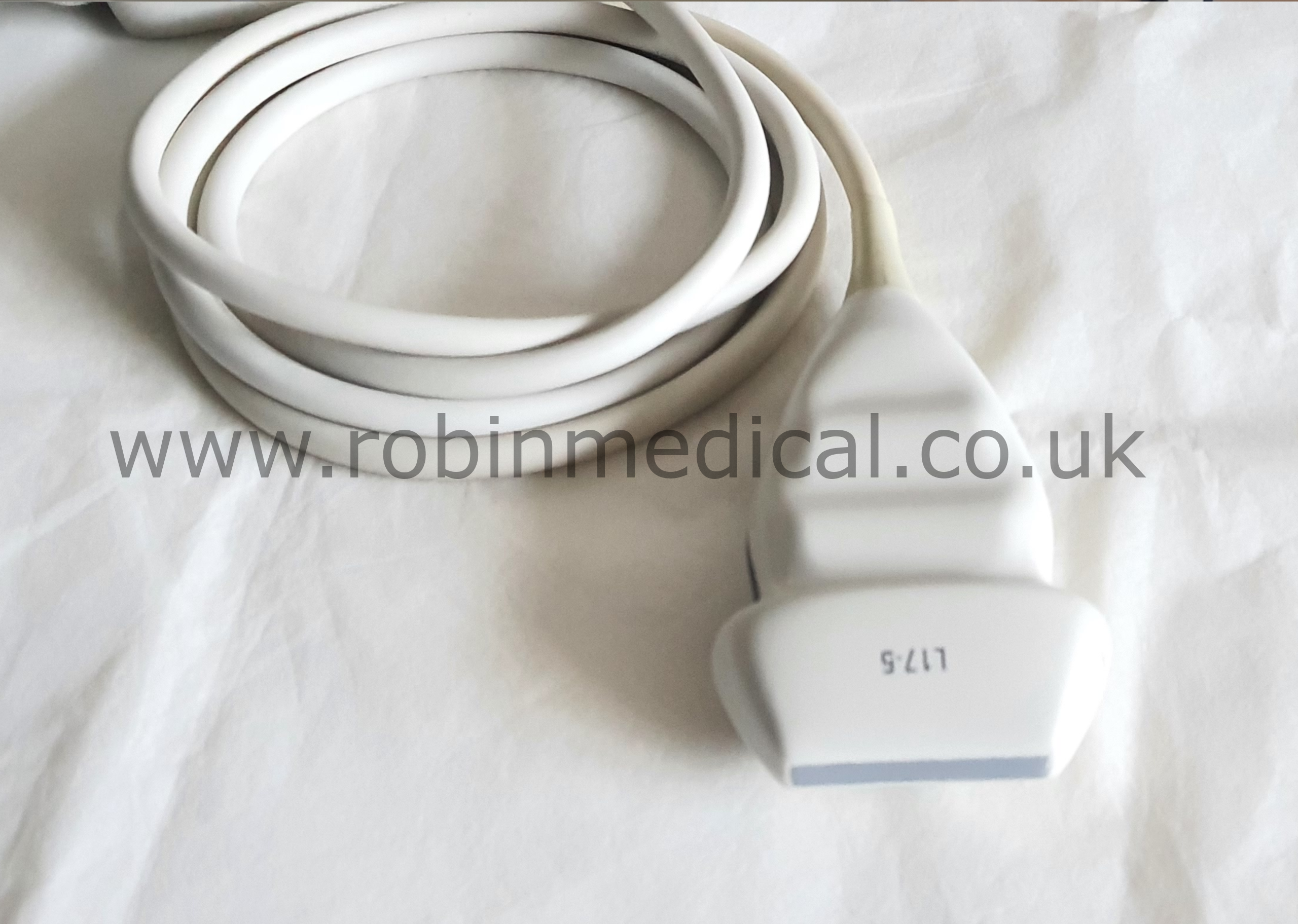

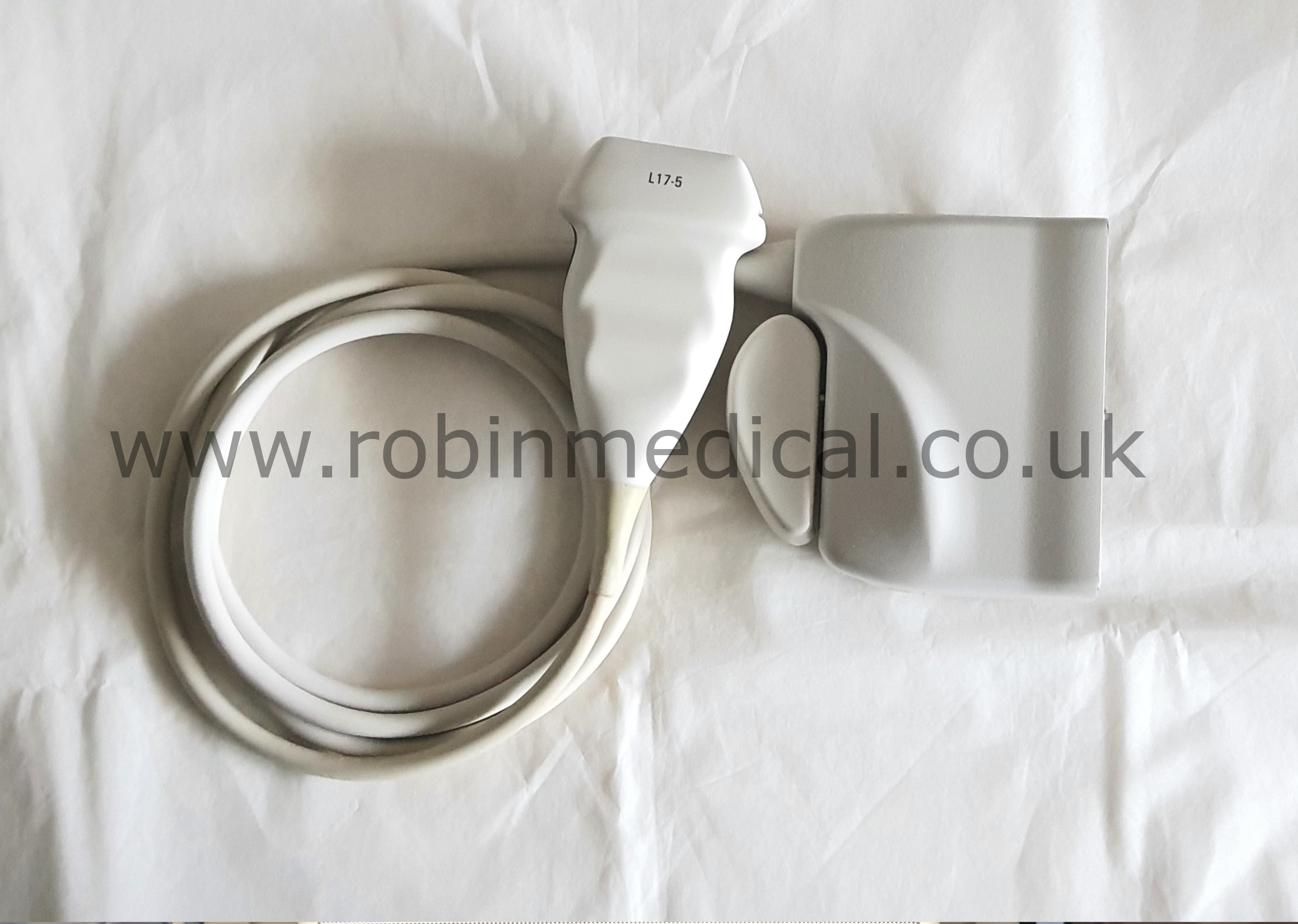

Philips L17-5 High-Frequency Linear Array Ultrasound Probe 5–17 MHz for iU22 – 453561211632
The Philips L17-5 is a broadband linear array ultrasound probe for breast, small-parts, superficial vascular and musculoskeletal imaging. This version is compatible with the Philips iU22.
- High-Resolution Imaging: Ultra-fine pitch, 288-element design for detailed imaging of superficial structures.
- Advanced Modes: Supports SonoCT, XRES, tissue harmonic imaging, and steerable pulsed-wave and colour Doppler.
| Specification | Details |
|---|---|
| Manufacturer | Philips |
| Model | L17-5 |
| Part number | 453561211632 |
| Serial number supplied | 03N54 |
| Probe type | High-frequency broadband linear array |
| Frequency range | 5–17 MHz |
| Element design | 288 elements, ultra-fine pitch |
| Imaging features | SonoCT, XRES and tissue harmonic imaging |
| Doppler modes | Steerable pulsed-wave and colour Doppler |
| Applications | Breast, small parts, superficial vascular and musculoskeletal imaging |
| Compatible system | Philips iU22 |
| Condition | Second-hand |
